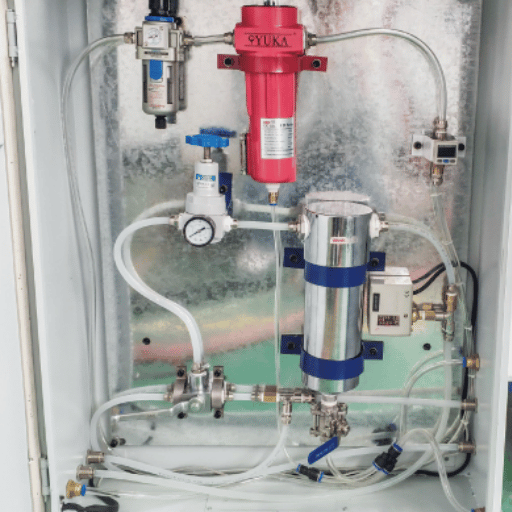

(1) One-key change the gas, avoid waste change gas;
(2) Gas pressure alarm, avoid burning the sheet plate;
(3) Add seperate gas filters, protect the mirror from gas pollution;
SHEET & PIPE LASER CUTTER CUTTING MACHINE-FLXP-GII SERIES
The Ultimate Labor-Free Solution for High-Performance Manufacturing
Best quality metal sheet & pipe fiber laser cutter is a type of automatic CNC laser metal cutting system not only for metal sheets and metal plates with different thickness, but also for metal sheet and metal tubes with different shapes.

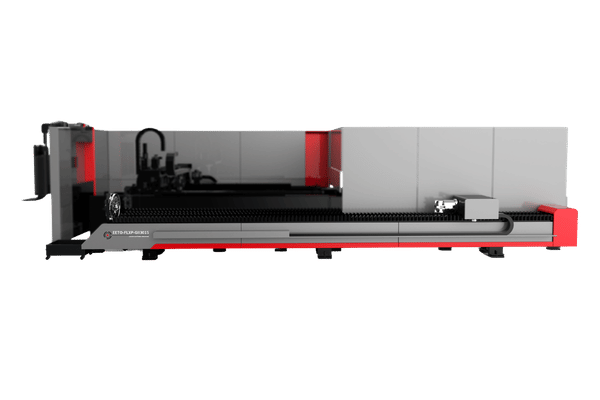

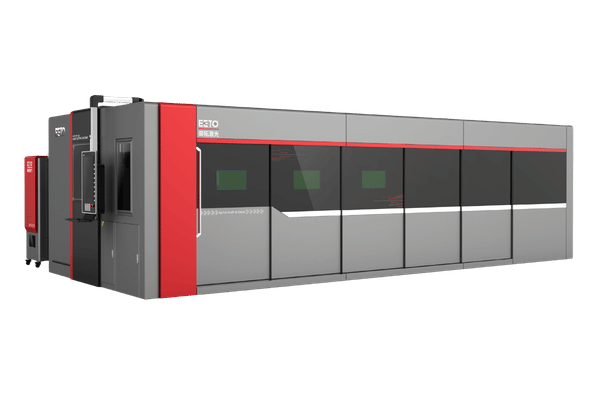

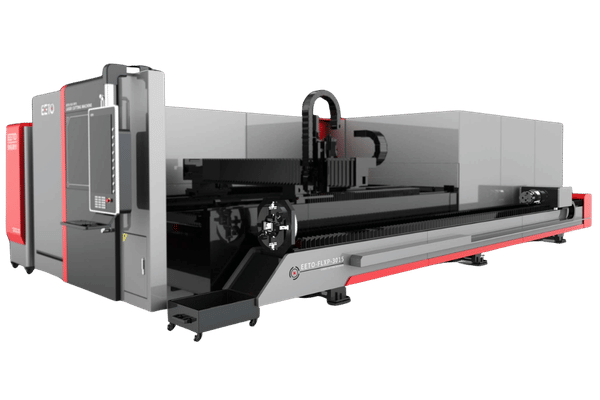

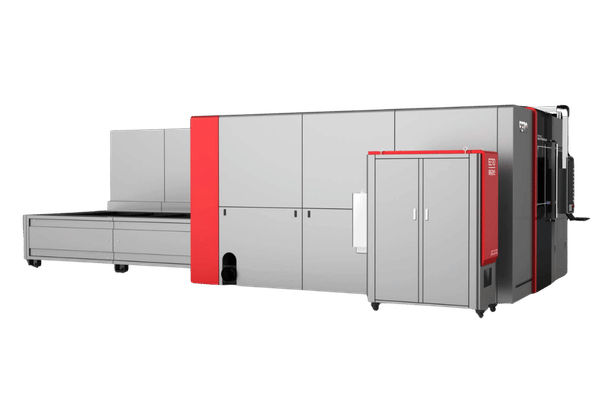

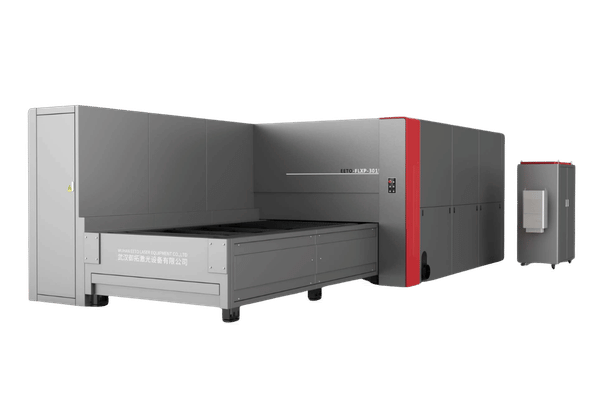

EETO-FLXP-GII (Enclosed): Where Advanced Innovation Meets Manufacturing Efficiency
Technical Datas
| Total Weight | Tons | 11.5T | |
|---|---|---|---|
| Total Power Consumption | KW | 38.5 | |
| Laser Type | CW Fiber Laser | ||
| Laser Wavelength | nm | 1070 | |
| Fiber Core Diameter | um | 100 | |
| Laser Power | W | 6000 | |
| Quality Cutting Thickness |
Mild Steel | mm | 25 |
| Stainless Steel | mm | 16 | |
| Aluminum | mm | 12 | |
| Net Cutting Area | mm | 3000*1500 | |
| Tube processing | Φ=20-200mm, L=3m, 6m (see Attachment 07 page) | ||
| Tube category | Round, square, rectangular, oval, waist round, triangle tube etc. | ||
| X.Y Axis Drive System | Rack and Pinion | ||
| P.R Axis Drive System | For tube cutting | ||
| Z Axis Drive System | Ball Screw | ||
| Z Axis stroke | mm | 230 | |
| Maximum Traveling Speed | M/min | 110 | |
| Maximum Acceleration X,Y Axis Speed | G | 1G | |
| Position Accuracy | mm/M | ±0.03 | |
| Repeatability Accuracy | mm | ±0.05 | |
| Cooling Style | Water | ||
| Bearing Weight | kg | 1200 | |
| Dimension | MM | 8600*3500*2200mm | |

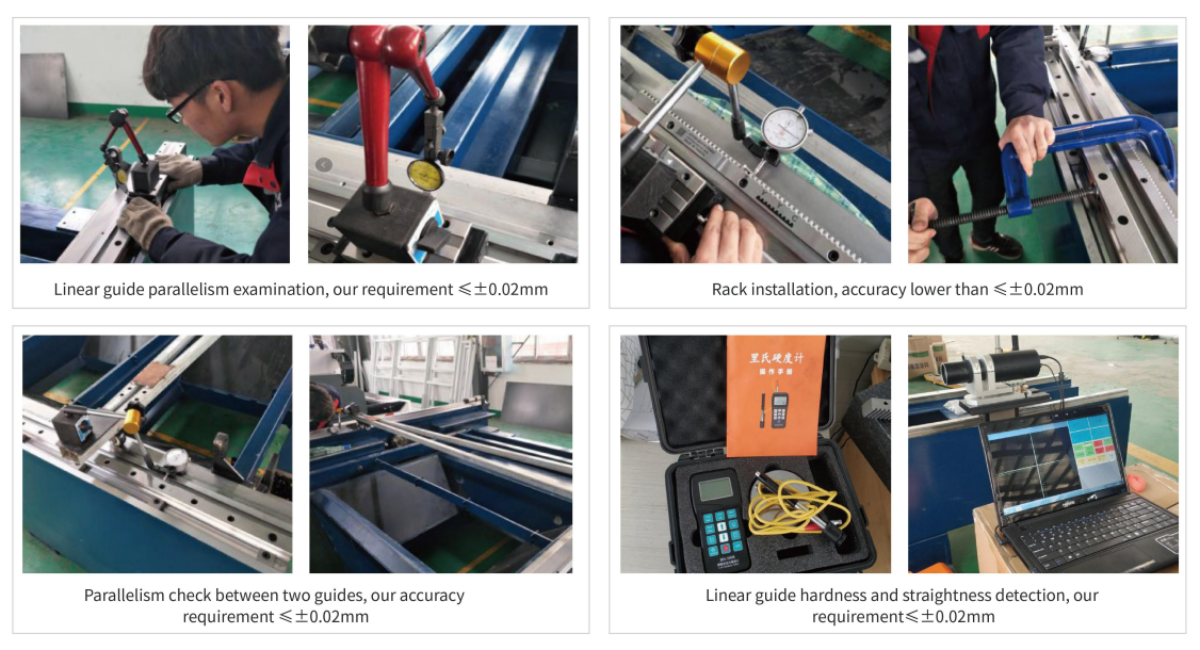

We Use Advanced Tools To Control Precision On Every Installation Steps
Machine installation is important for checking quality of a laser machine, especially motion parts installation, which is used for ensure running and cutting accuracy, here we introduce you how we install our laser machine Linear:
Some Special Designs Different From Other Factories

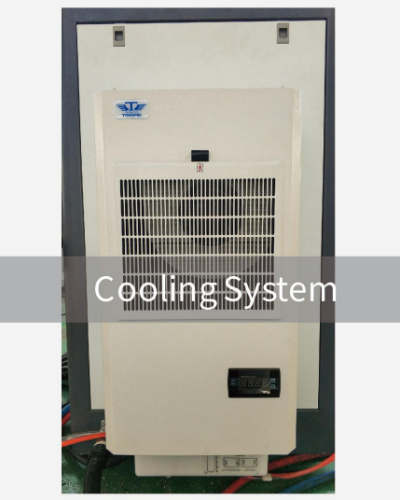

Cooling System
Industry Chiller + Separate Climate Control Air Conditioner for Laser Generator

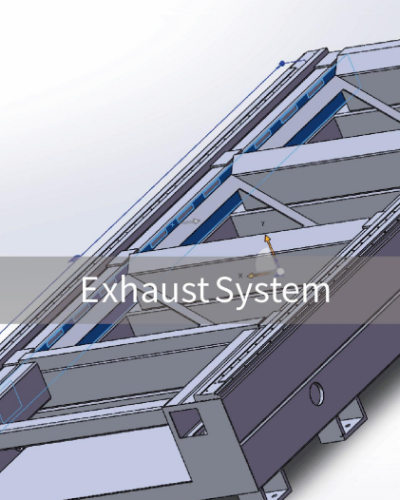

Exhaust System
Combine Exhaust System with the Machine Structure

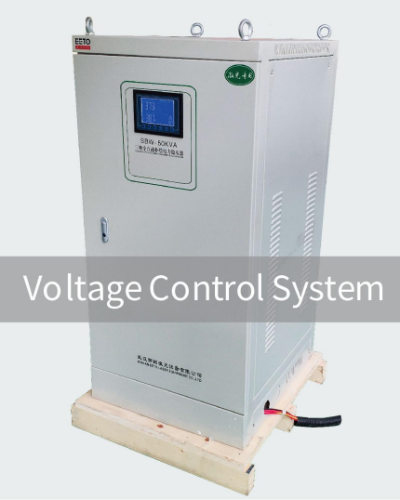

Voltage Control System
Equip Voltage Stabilizer for each Laser Machine (EETO Custom-made)
What is special for our pipe cutting?

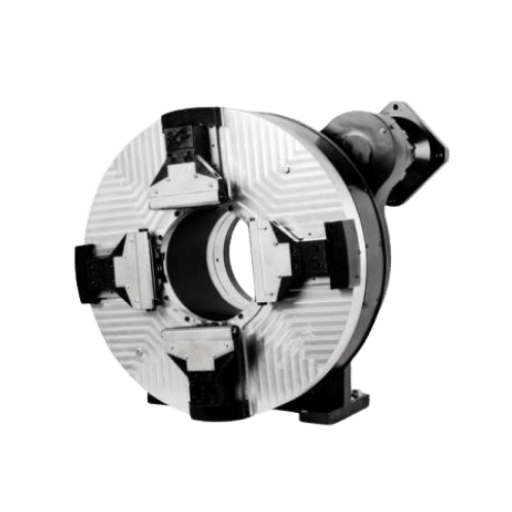

Front Chuck
Full-Stroke
Full-stroke clamping, automatic precision centering, rapid automatic processing
Strong Stability
Integral built-in drive structure to improve transmission accuracy and stability
Gear Built-in, One-piece Casting
Avoid cutting dust from entering,one-piece casting, stable installation of reducer
Low Rotating Inertia Fast speed
Use the same power motor, fast acceleration, low application cost
Less Tailing
The rear chuck can be extended into the matching front chuck

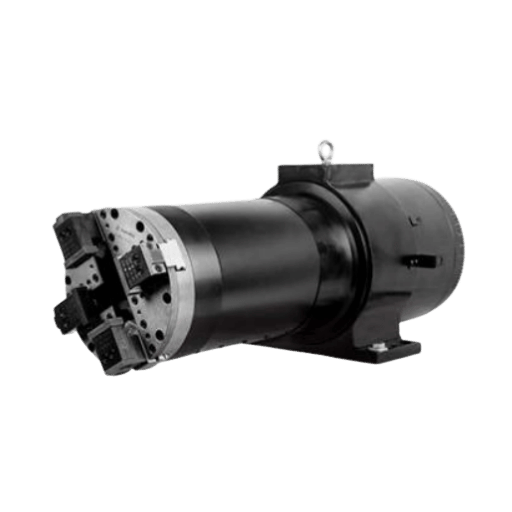

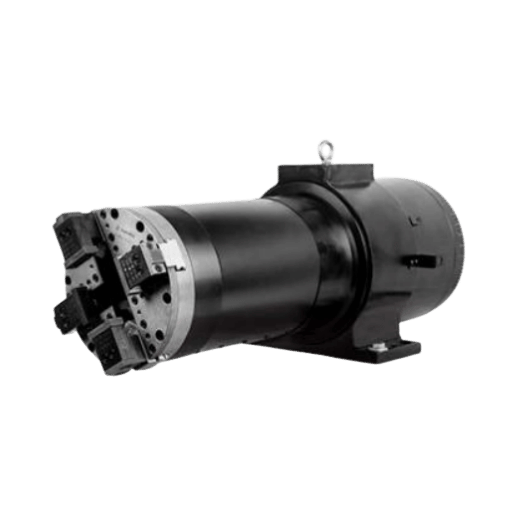

Rear Chuck
Low Rotating Inertia
Meet the small pipe fast cutting
Convenient Application
Large clamping stroke of rear card, few types of jaws,easy to use
All-in-one Design
Multi-angle installation of the reducer can be realized
Position Detection
Support the detection of the maximum jaw opening and minimum clamping position
Special-shaped Pipe Clamping
Optional clamping claw for various profiles to keep the pipe from slipping

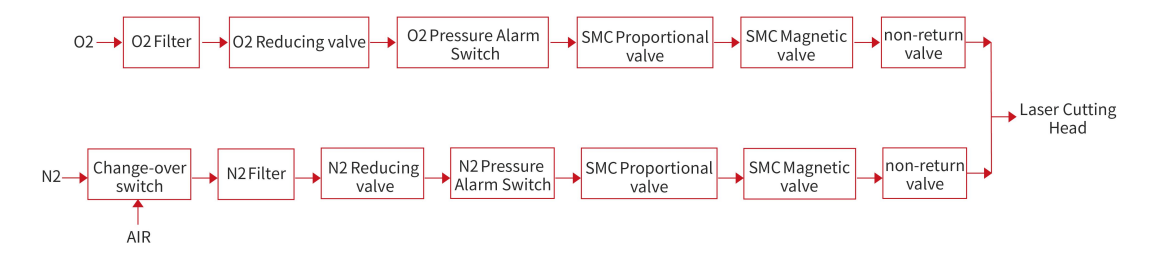

Advanced Gas Control for Safety and Protection
Robust Mechanic
Mechanic structure is basic for a reliable system. We focus on manufacturing processes to make sure all the mechanical parts meet our customer’s requirements.
Optimized Base Structure
To ensure the machine body does not deform and make noise after years of production, we welded the body with a thickness of more than 8mm steel, make use of annealing in the production process is to eliminate internal stress and improve cutting precision.
Process for Endurance
Combined self-design Gantry CNC structure and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability.
Delicate Assemble Procedures
Strict procedures in assembly to ensure every machine from our factory has a long lifetime and stable performance, we trained every worker till they qualified, has passed ISO9001 certificate, there is no destination when we pursue better quality.
Downdraft Table Design
We innovatively adopt a three-zone exhaust design, that greatly improves the efficiency of collecting fume,and result in a better protection for operator and environment.
Pneumatic Chuck System
This tube cutting part can be customized to 6m long tube supported, and we adopted the auto-pneumatic system to clamp and rotate.
All in One Cutting Solution meets All Your Fabrication Works
FLXP-GII Series, all our most advanced ideas for laser Cutting are integrated inside, which gives the best operation experiences and helps improve your manufacturing efficiency.

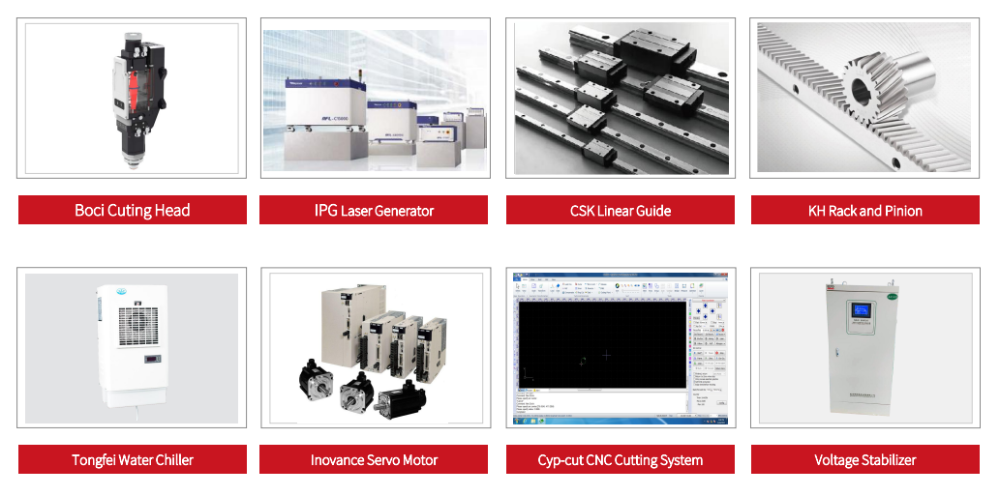

Get Instant QuoteMain Parts

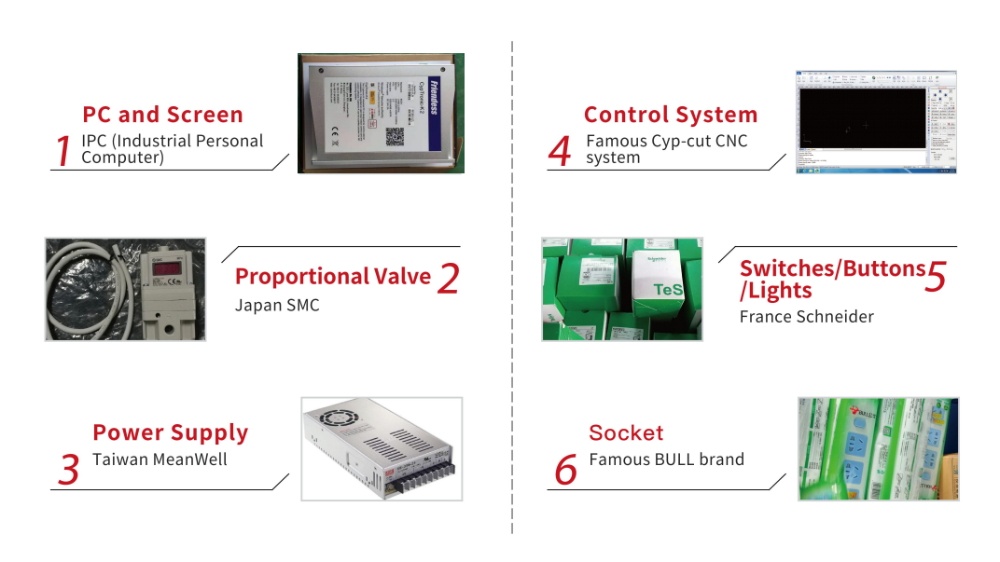

Electrical Component
More Machine Details

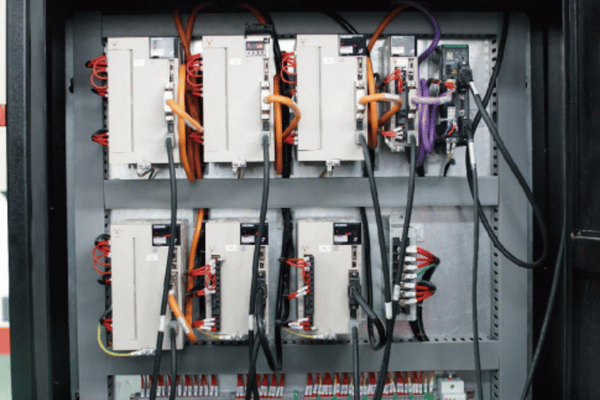

Orderly Distributed Components
All the signal cables and components are orderly distributed, and each cable has linemark on it, it is convenient for maintenance.

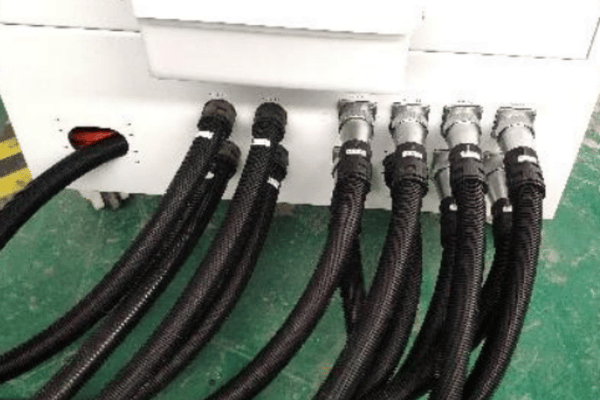

Aviation Plug Connections
Main cables adopt aviation plug connections making machine installation quite simple, saving much of your time.

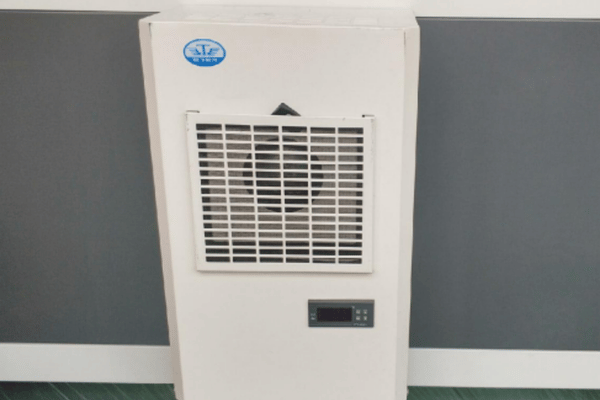

Constant Temperature Cabinet
Each electrical cabinet will be installed with an air conditioner, which makes sure the temperature inside the cabinet constant.

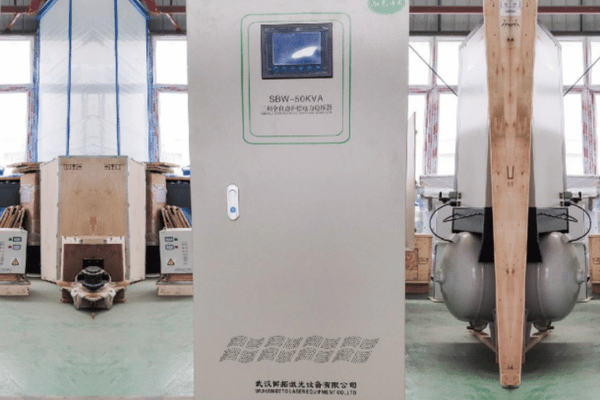

Equipped Voltage Stabilizer
Each of our machines goes with a voltage stabilizer, which protects our machine from harmful impact due to acute change ofvoltage.
YYC Rack & TBI Linear Guide

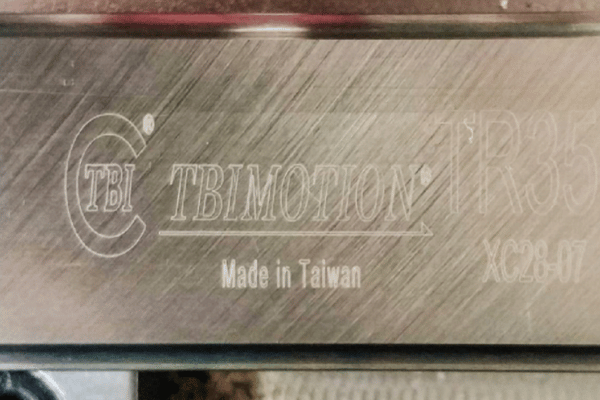

We use higher precision grade YYC rack and TBI Linear guide, the code on the rack can be checked on the internet.
Convenient Workpiece Trailer

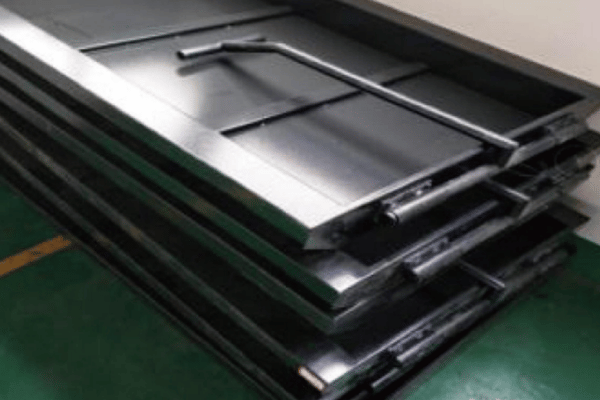

These are trailer that collect the cut-off workpieces under the machine bed, you can directly pull it out after finishing cutting.

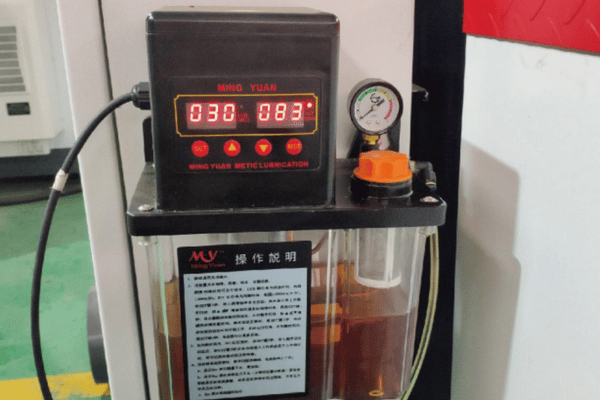

Integrated Lubrication
Integrated lubrication, all the motion parts can be lubricated from this oil pump.

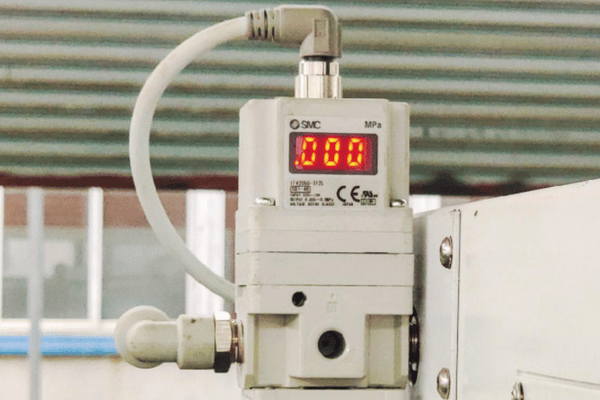

Automatic Gas Control
Automatic Gas Control, oxygen and nitrogen can be automatically controlled.
Working Conditions
| S.N | Sub Item | Item | Requirements | Notes |
|---|---|---|---|---|
| 1 | Power | Laser | 20KW | The total installed capacity is less than 38.5 KW |
| Chiller | 7.3KW | |||
| Motors and drive | 8.2KW | |||
| Other accessories | 3KVA | |||
| Stability of 3-phase power | 380V ±5% | |||
| Instability of 3-phase power | <2.5% | |||
| Earthing | <4ohm | |||
| 2 | Water | Water for Chiller | Distilled water without minerals | |
| 3 | Gas | Cutting Gas | N2>99.99% | The processing parameters |
| O2>99.5% | ||||
| AIR pressure should not less than 1.2MPA | ||||
| 4 | Working | Temperature requirements | 5-40 Degree | If there is a vibration source on site or nearby, the user is required to dig an anti-vibration trench around the foundation |
| Humidity requirements | Less than 70% | |||
| Foundation requirement | There should be no vibration source nearby | |||
| 5 | Work piece | For CS and SS: quality surface and no rust | ||
Sheet Metal Laser Cutter
Pipe Metal Laser Cutter
Sheet & Pipe Laser Cutter
