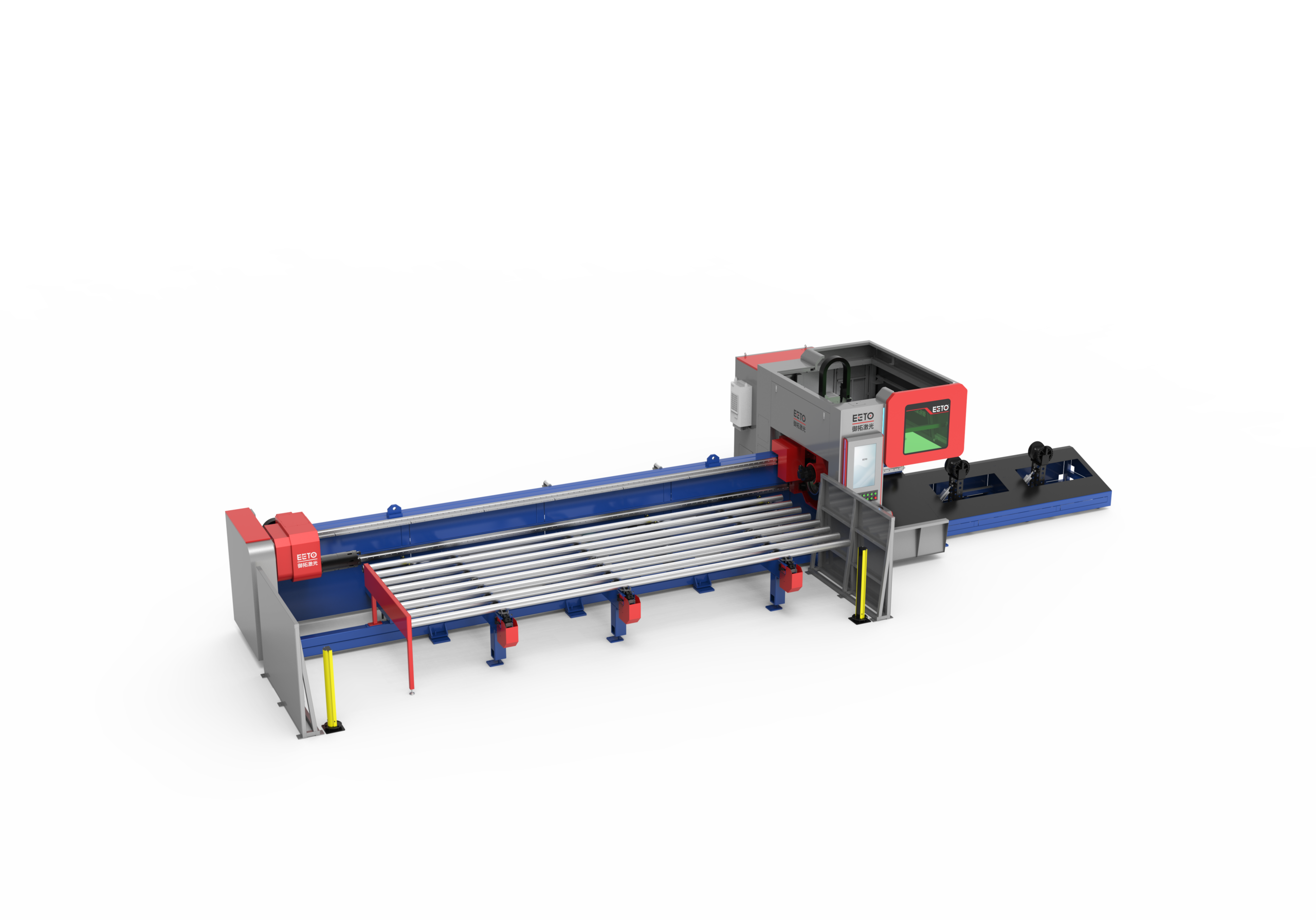

FPC-S Series Pipe Fiber Laser Cutting Machine
FPC-S Series Pipe Fiber Laser Cutter: Precision, Flexibility & Custom Solutions

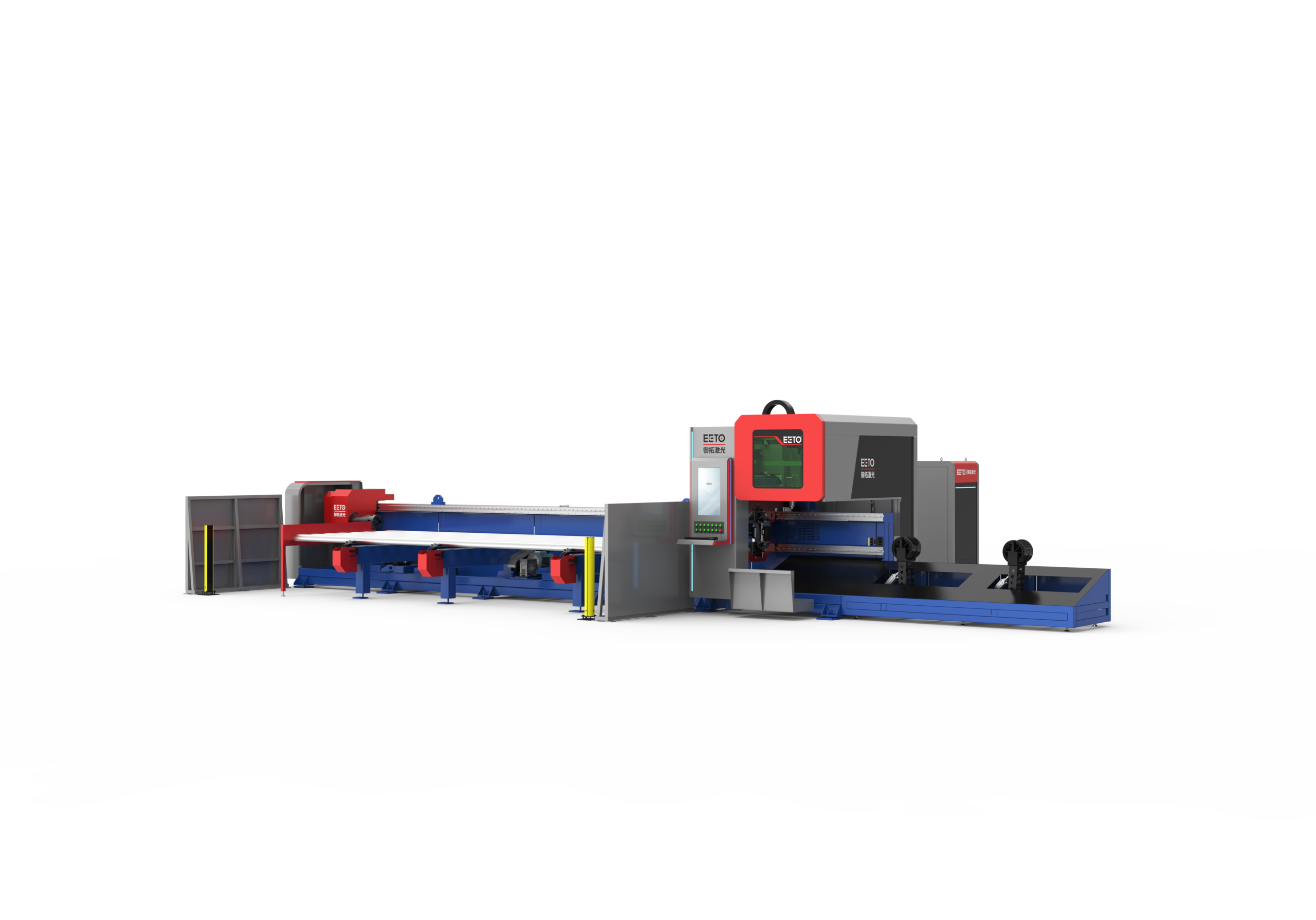

The FPC-S Series Pipe Fiber Laser Cutting Machine offers precision and versatility with its side-mounted structure and ability to handle various tube diameters. Designed for flexibility, it provides customizable solutions to meet unique production needs.
FPC-S Series: Flexible & Customizable Pipe Laser Cutting
Precision and Flexibility Cutting Solution for Tube

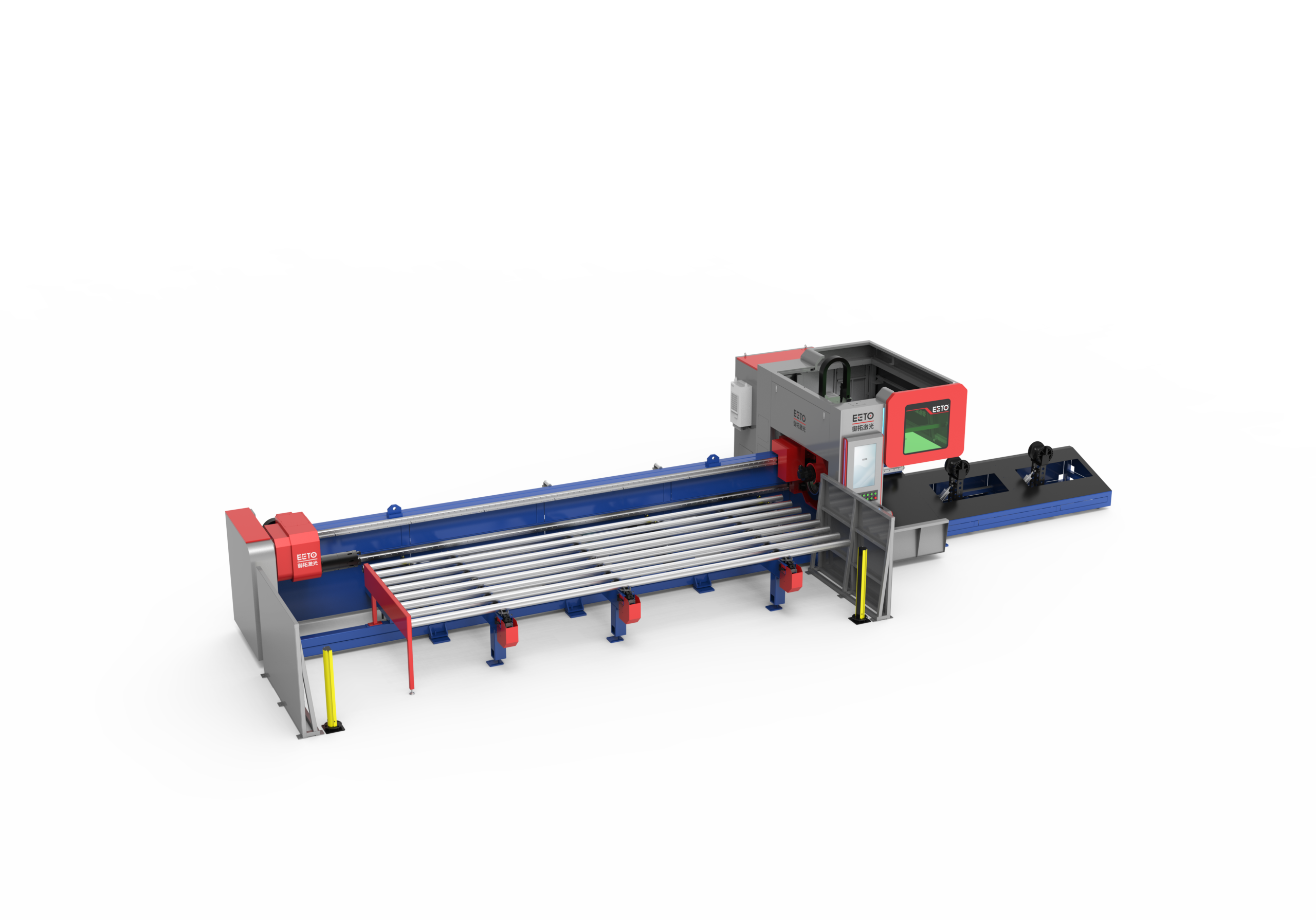

Unmatched Flexibility
FPC-S is capable of cutting tubes with diameters ranging from 20-220mm or 20-240mm, making it suitable for a wide variety of applications. To adapt to different factory layouts, the machine offers the option of left-side or right-side loading, ensuring seamless integration into your production line. Additionally, it can be equipped with a semi-automatic loading system, further enhancing efficiency and reducing manual labor.
Cost-Effective Solution
We understand the importance of balancing performance and cost. FPC-S delivers high cost-performance ratio, providing advanced laser cutting capabilities at a competitive price. This makes it an ideal choice for businesses looking to maximize their return on investment without compromising on quality.
Robust and Stable Construction
FCS-S features a heavy-duty bed body, ensuring exceptional stability during operation. This robust design minimizes vibrations and enhances cutting accuracy, even during high-speed or heavy-load operations. The result is consistent, high-quality cuts and extended machine lifespan. Additionally, its compact size means easier transportation and simpler installation, saving you time and effort.
High-Precision Cutting
Equipped with a high-precision cutting system and an intelligent cutting head, FPC-S delivers superior accuracy and repeatability. The advanced technology ensures clean, smooth cuts with minimal material waste, making it perfect for industries that demand tight tolerances and flawless finishes.
Technical Data
| Specification | Details |
|---|---|
| Model | FPC-S Series |
| Laser Power | 1.5-6 kW |
| Tube Processing Type | Round, Square, Rectangle, Oval, Triangle, Angle Bar, Channel Steel, H/I Beam |
| Max Travelling Speed | 80 m/min |
| Max Acceleration | 0.8 G |
| Rotation Speed | 80 rpm |
| Positioning Accuracy | ±0.1 mm |
| Repositioning Accuracy | ±0.05 mm |
| Unloading Structure | 3 m unloading with pneumatic manual support |
| Max Loading Capacity | 220 mm round chuck – 200 kg 240 mm square chuck – 260 kg |
| Machine Weight | About 6 tons |
| Input Power | 380 V, 50 Hz |
| Power Consumption | 17.5-50 kW |
Round Tube Wall Thickness Cutting Capacity
| Laser Power (W) | Carbon Steel (mm) | Stainless Steel (mm) | Aluminum Alloy (mm) |
|---|---|---|---|
| 1500 | 6 | 2.5 | 1 |
| 2000 | 9 | 4 | 3 |
| 3000 | 11 | 5 | 4 |
| 6000 | 14 | 10 | 6 |
Configuration Sheet
| Component | Brand/Model | Specification |
|---|---|---|
| Laser Source | Raycus | 1.5-6KW |
| Laser Cutting Head | BOCI SERIES | BLT310T/BLT421T |
| Control System | BOCHU | Fscut3000 |
| Water Chiller | TongFei | TFLW Series |
| Chuck | DAIRUIKE | 1× Hollow chuck, 1× Rotary chuck |
| Linear Guide | CSK | Standard |
| Rack and Pinion | KH | Standard |
| Servo Motor | Inovance | Standard |
| Gear Reducer | Tomogawa | Standard |
| Cameras Monitoring | EETO | Standard |
| Proportional Valve | SMC | Standard |
| Exhaust System | EETO | Standard |
Optional Item
| Category | Details |
|---|---|
| System Type | Semi-autoloading system |
| Materials Supported | Round, Square, Rectangle, Angel Bar, Channel Steel, H/I Beam |
| Safety Feature | Light Curtain LN TECH (for material loading area) |
| Voltage Transformer | 50KVA / 60KVA |
| Software | Professional Nesting Software TUBES-T |
| Valve | High Proportional Valve (for Nitrogen) – SMC |
| Air Compressor | 15KW / 22KW |
| Dust Collector | 7.5KW, 6 Cylinder |
Safety Is Always Our First Priority
Monitoring Cutting Processing Camera
Lifting Pneumatic Front Door
Europe Standard Circuit
Gas Control System
Gas Run Out Alarm
Interlock Mechanism
CE Level Glass Protection (Optional)
Light Barrier (Optional)
Comprehensive System for Maximizing Your Production Outputs
FPC-Pro Series, Designed for working with Auto/Semi Auto Material Handling and Loading, improves Production Performance for Your Professional Pipe/Tube Cutting Workshops.

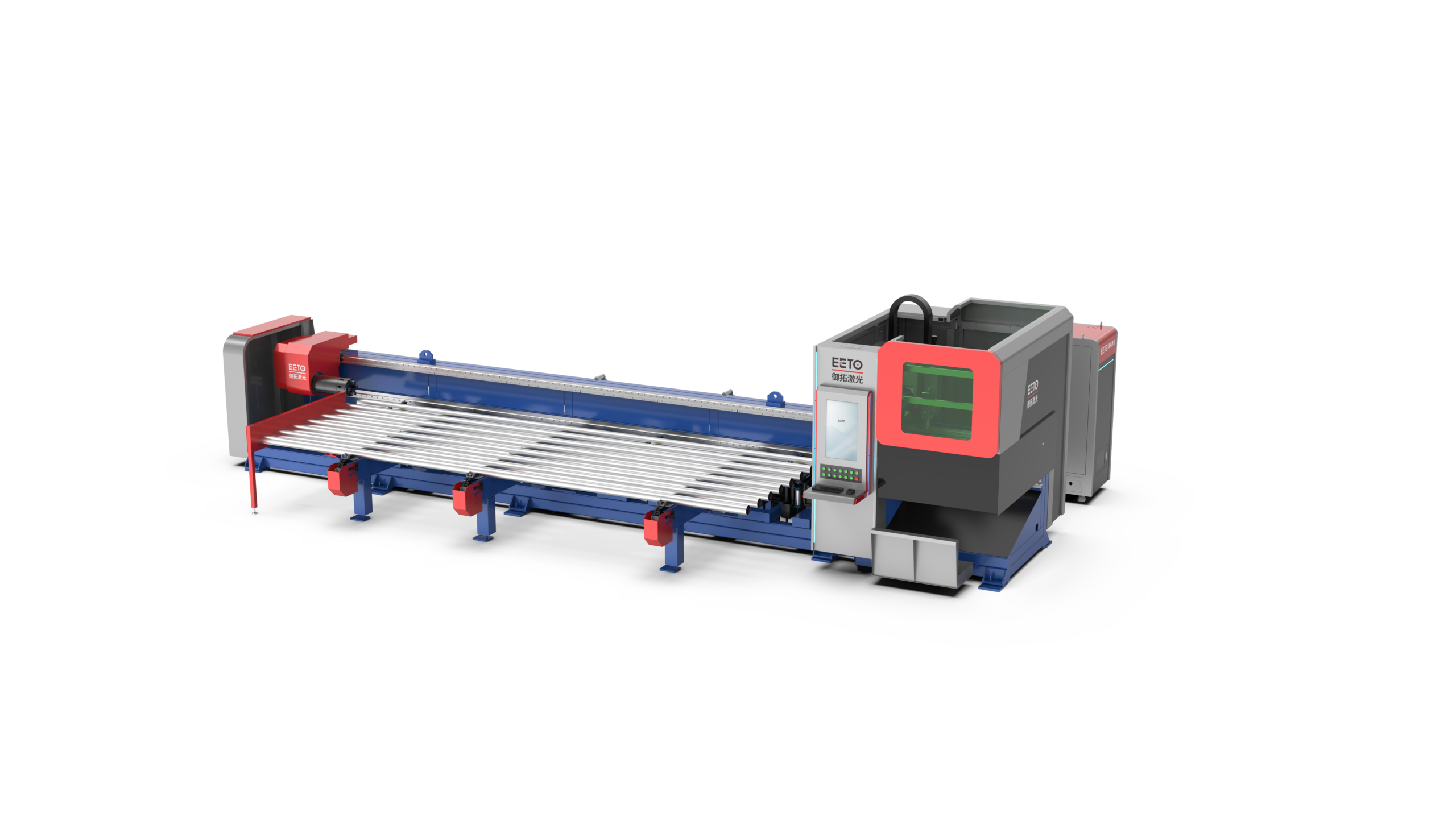

Intelligent Semi-Auto Loading: Efficiency Redefined
Intelligent Cutting Head
- Closed-loop Monitoring
- Protective Lens Temperature Monitoring
- Cutting-gas Pressure Monitoring
- Built-in Amplifier
- Anti-collision Protection
- Anti-explosion Detection of Protective Lens
- Smart Piercing Technology
- Real-time Process Monitoring
High Precision Control System
- Special-Shaped Beams: Supports centering for L/U/H beams, improving cutting accuracy and efficiency.
- Error Compensation: Incorporates square/rectangle profile offset to compensate for regular errors and reduce waste.
- Quick Tube Alignment: Offers quick alignment using the cutting head, reducing manual time and front-end scrap.
- Fine Finishing: Utilizes fine techniques for starting and ending cuts to avoid over-burning and burrs.
- Advanced Nesting: Compatible with TubesT nesting software for optimized toolpath generation.
Ultimate Flexibility & Customized Configuration

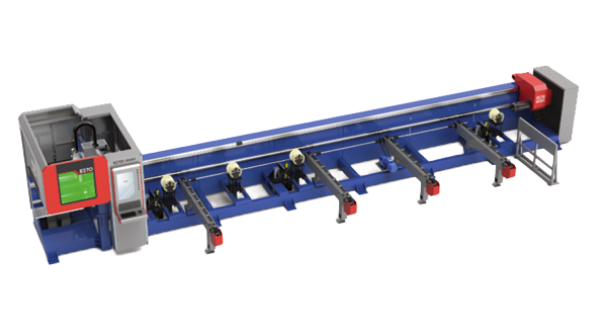

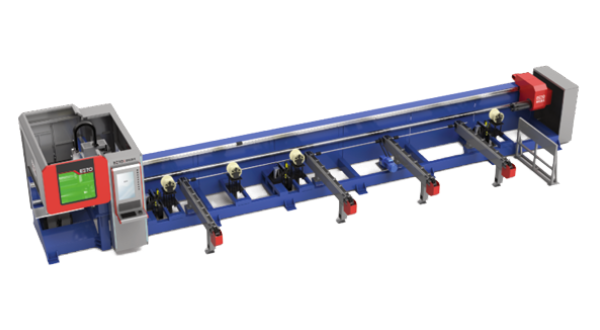

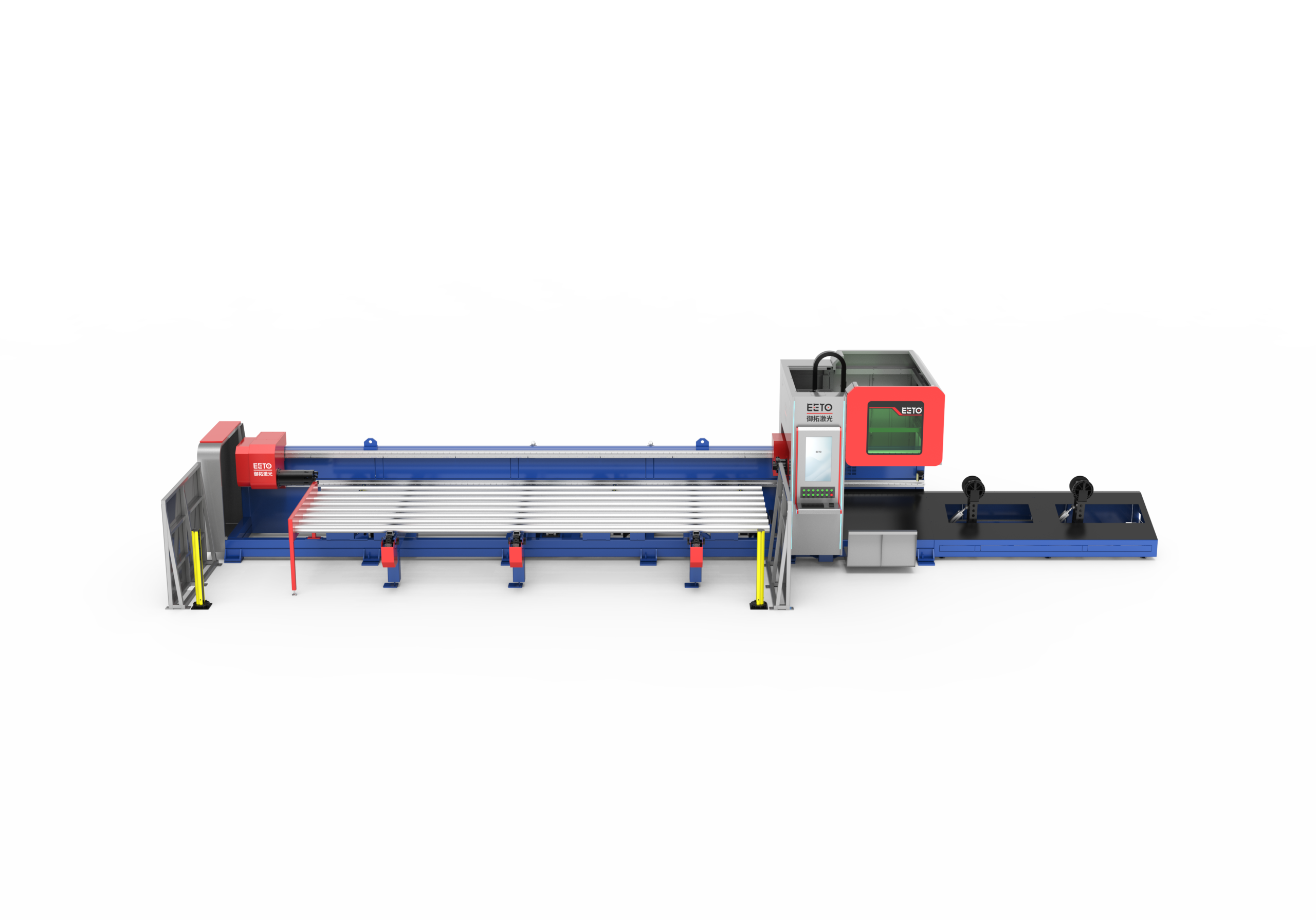

Flexible Layout
According to customer's facotory we can customize left side loading or right side loading
- Increased Productivity
- Improved Safety
- Reduced Labor Costs

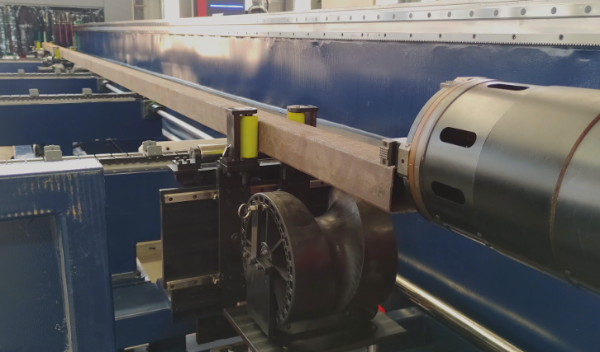

Floating Support and Clamp
- Avoiding sagging of small tubes
- Help front chuck to clamp tube (Centering &Move forward )
- Automatic release and descend when rear chuck approaching

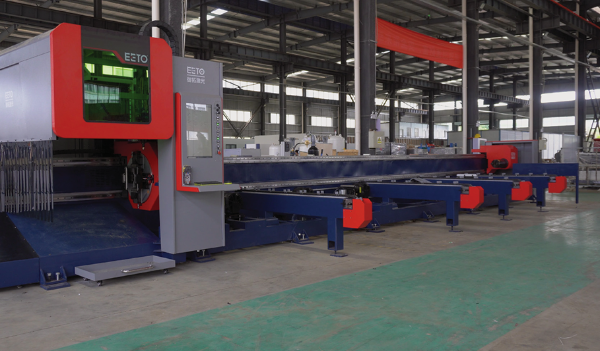

Side-Mounted Chuck Structure
- Space Saving
- Support heavy tube loading
- Easy for maintenace
- Faster production cyle
