MOBILE WELDSTAR FLW SERIES LASER WELDING MACHINE
Redefine efficiency with our cutting-edge portable laser welding solutions
Choose the high-power ‘Mobile WeldStar Aqua’, equipped with advanced water-cooling technology available in 1500W, 2000W, and 3000W options, for intensive jobs; or opt for the ‘Mobile WeldStar Breeze, offering a compact and agile aircooled system perfect for lighter applications at 800W and 1200W. Whether in the workshop or on the go, Mobile WeldStar delivers unparalleled precision and performance tailored to your needs.
FLW Series Solution
4 In 1 Handheld Fiber Laser Welding Machine
Welding with Laser is no longer complicate. With FLW Series Welding machine, you could easy weld your parts with Laser and greatly improve your product quality. Low learning curve design for experienced welding technicians, and even for anyone who just start learning welding techniques. This laser welder features 1500W, 2000W, or 3000W fiber laser beam for welding joints of butt, edge, corner, tee, and lap.

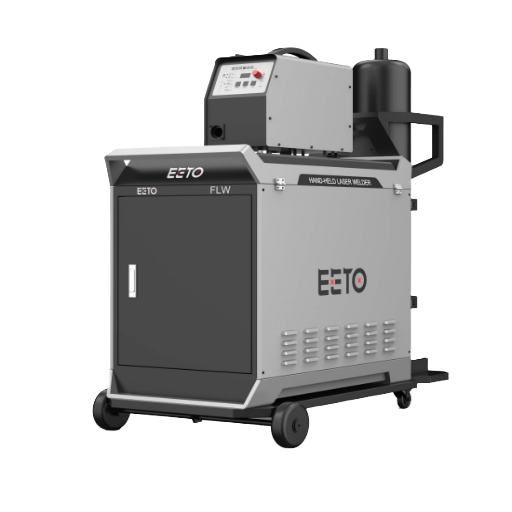

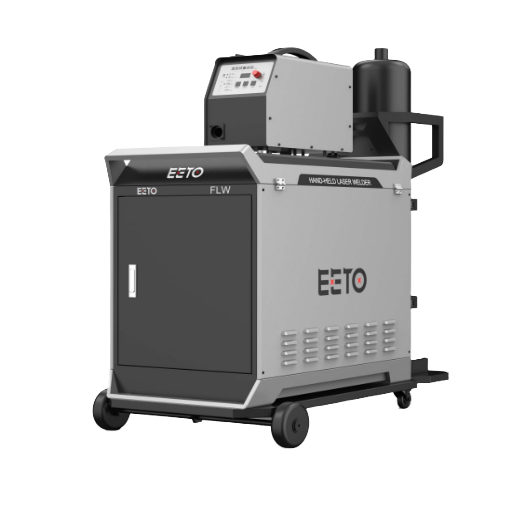

Mobile WeldStar Aqua

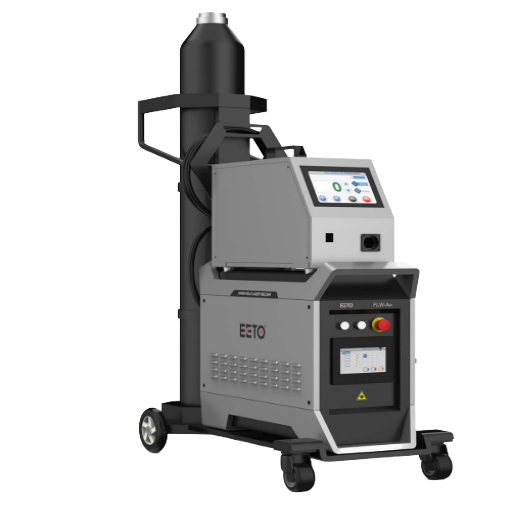

Mobile WeldStar Breeze
Technical Data
Technical Data |
Mobile WeldStar Breeze | Mobile WeldStar Aqua | |||
|---|---|---|---|---|---|
| 800W | 1200W | 1500W | 2000W | 3000W | |
| Weight [Kg] | 103 | 107 | 192 | 201 | 211 |
| Size [L×W×H mm] | 1084 × 553 × 1186 | 1084 × 553 × 1186 | 1370 × 748 × 1186 | 1370 × 748 × 1186 | 1370 × 748 × 1186 |
| Input Voltage | 220V Single Phase | 220V Single Phase | 220V Single Phase | 220V Single Phase | 380V Three Phase |
| Power Consumption [Kw] | 2.5 | 3.8 | 6.8 | 8.6 | 12.8 |
Shield Gas: Nitrogen / Argon, Purity ≥ 99.5%, Gas Pressure: 3-5 Bar

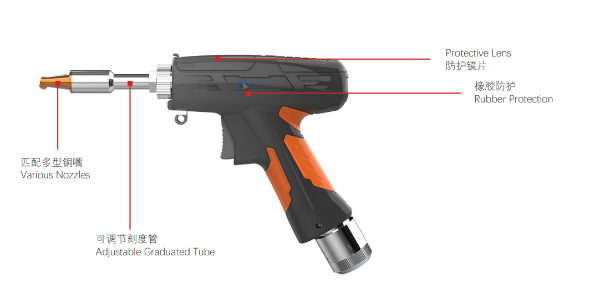

Light Weight Welding Gun
Features
- Ultra-small and ultra-light, weighing only 0.7kg.
- Easy maintenance; lenses can be quickly replaced on-site.
- Temperature detection; lens damage can be detected promptly.
EETO-FLW (Handheld) Intuitive System
- Up to 3000W power support
- Gas turn on/off delay
- 10-100% power adjustment
- Spot/continuous welding modes
- Laser status alarm
- Temperature abnormal alarm
- Gas pressure alarm
- 10 sets of parameter saving
- Welding/Cleaning Model Switch
- 19 Languages support
- Capacitive touch screen
- 5mm swing welding width
- Anti-misoperation button
- Safety loop circuit

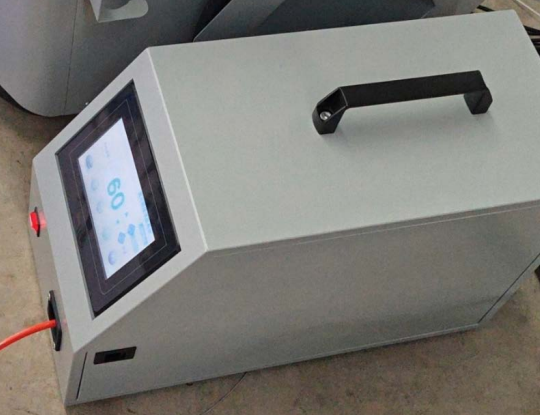

Wire Feeder
Welding Wire Reel
- Outer Diameter (OD) ≤ 300mm
- Inner Diameter (ID) ≤ 53mm
- Weight ≤ 30kg
- Wire Diameter 0.8 / 1.0 / 1.2 / 1.6mm
- Feeding Mode Manual / Auto
- Feeding Speed 25-600cm/min
- Wire Material MS / SUS / ALUMINUM
- Dual Wire Feeding Optional

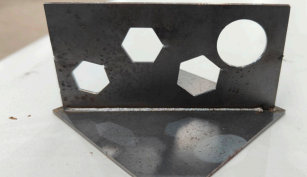

Single Wire Feed

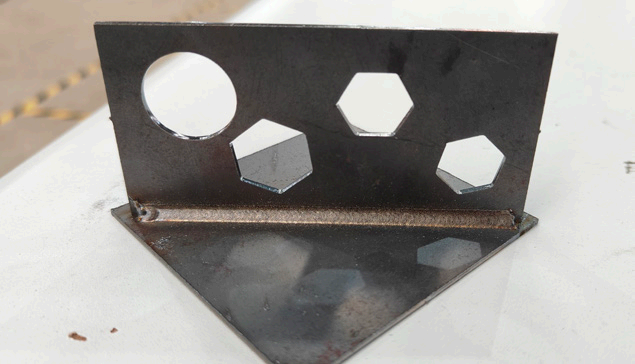

Dual Wire Feed
Tips: Double wire feeding can achieve a maximum weld bead width of 8mm to achieve better welding strength. Double wire feeding can have very good effects for thick plates or when the welding seam is wide.
Our Partners focus on Laser Welding Technology
We elaborately choose every components, Working closely with our partners, Ensure our machine and system works in best condition.
Qilin Welding Head
Qilin Welding Head

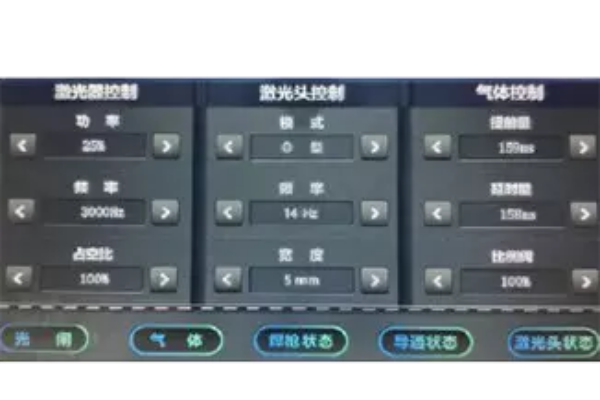

Qilin Control System

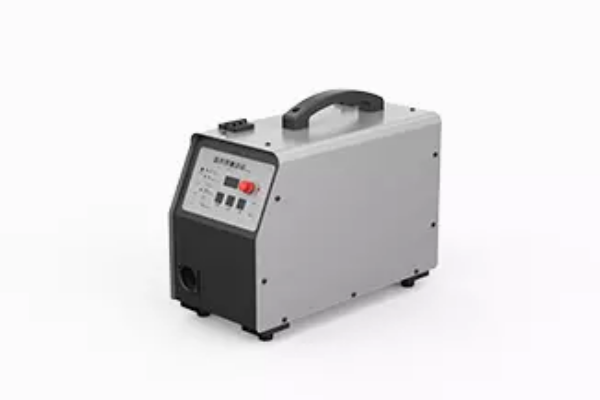

Qilin Wire Feeder
Hanli Water Chiller

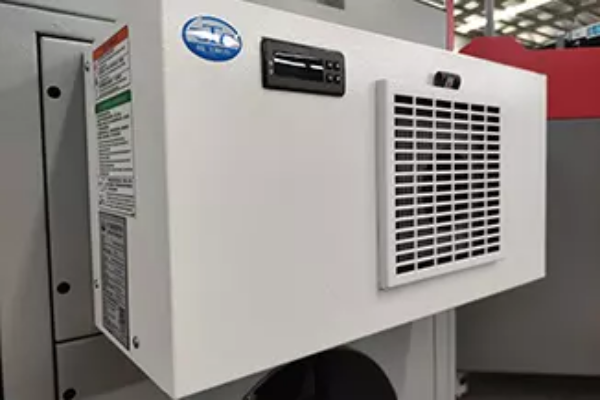

Tongfei Air Conditioner

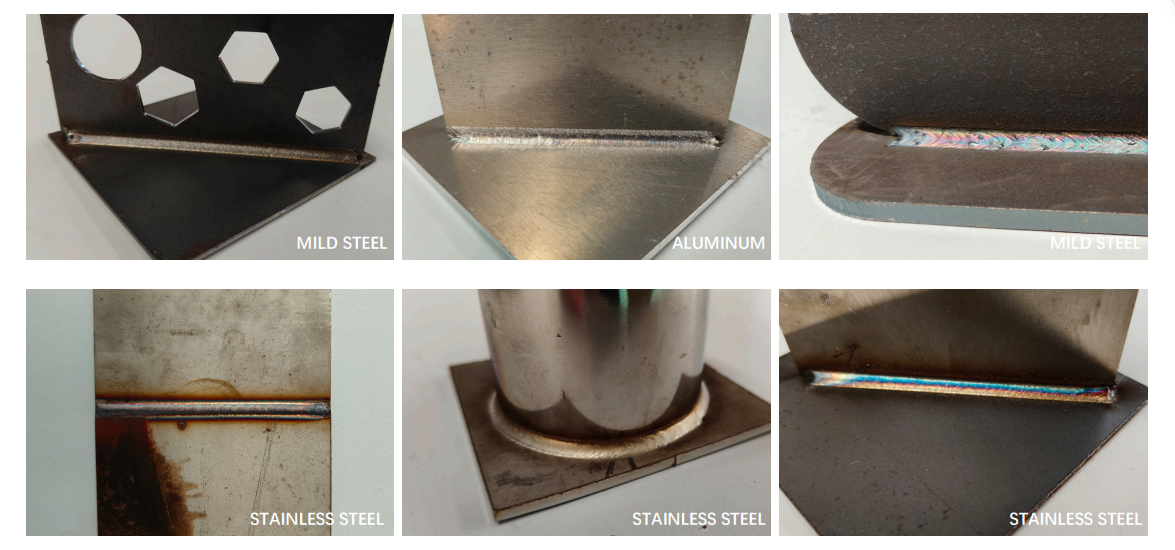

Welding Skills
As Our Belief, Details Make Differences

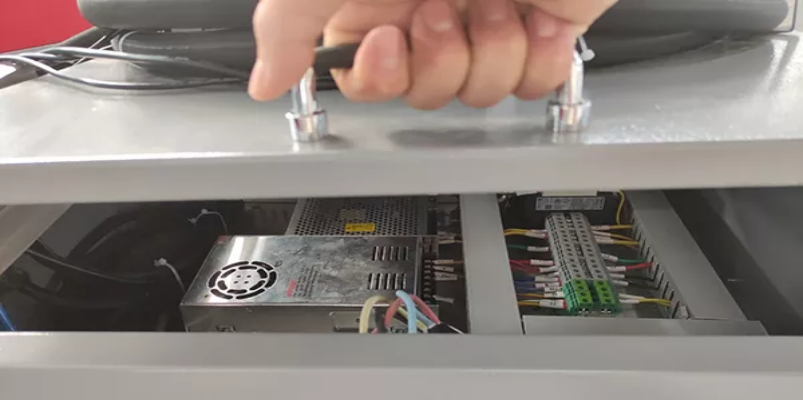

Electrical Design by International Standards
We follow International Standard for Electrical Wiring Design, make sure follow up maintenance and service would be much more easier.
Low Learning Curve for Operations
Easy to Move, Setup and Ready to Go. Welding with Laser is not a difficult process any more. Improve your product quality right away!
Benefits for the Factory
1. Lower Labor Costs:
No need to hire expensive professional welders, significantly reducing labor costs.
2. Stable and Reliable:
Each Mobile WeldStar is built using reliable Chinese fiber laser components and world-leading technological design. Extended operating times lead to higher productivity and limitless possibilities.
3. Higher Efficiency and Better Quality:
Higher qualification rate, fewer defective products, and lower average costs per part. Shorter product delivery time, making it easier to win market competition.
Benefits for Welders
1 Easy Setup
- Start Up
- 220V/380V Standard Industrial Power Supply
- Standard Industrial Gases: Nitrogen or Argon
- Match the Correct Welding Wire and Diameter
- Safety Loop Clamp
- Ready to Weld
2 Easy Operation, Fast Learning Curve
Simple operation with real-time control of weld bead frequency and width, equipped with a dual wire feeding system, weld bead width up to 8mm
Built-in oscillating welding function, high tolerance for workpiece assembly gaps, resulting in stronger and more aesthetically pleasing welds. The built-in wobble welding function allows for high tolerance of workpiece assembly clearances, resulting in stronger and better weld seams. Novices can achieve welds of the same high quality as experienced operators using stored parameter modes. Suitable for welding various metal materials, with good welding consistency.
3 All-in-one design
The welding machine, wire feeder, and auxiliary gas cylinder are integrated on a trolley, facilitating flexible changes in work locations. Simplified cabling means a cleaner workspace and a safer working environment.
4 Cleaner welding with less fumes
During laser welding, heat is concentrated at the welding point, reducing the amount of smoke and exhaust gas generated, making it more environmentally friendly than traditional welding methods. Laser welding concentrates heat at the welding point, reducing smoke and waste gases compared to traditional welding methods, making it more environmentally friendly. Reduced smoke emissions improve workplace air quality, creating a cleaner and more comfortable working environment, which is beneficial to worker health and productivity. Less pollution helps companies comply with environmental regulations and standards, enhancing their corporate image and gaining social recognition.
Comparison Between Laser Welding And TIG/MIG Welding

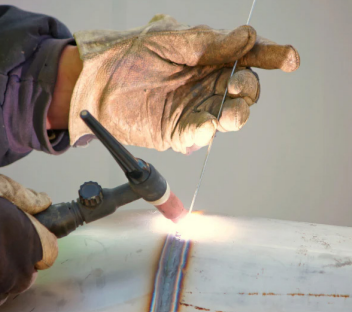

TIG Welding Limitations
TIG welding generates high heat that can cause thin materials to deform, resulting in unattractive welds. Additionally, welding copper materials is challenging, and there are limitations in welding metals of varying thicknesses.
MIG Welding Limitations
MIG welding consumes significant amounts of welding wire, and materials must be pre-cleaned and beveled before welding to effectively penetrate thick metals. Vertical welding poses significant challenges due to restricted welding directions and operational angles.
By using the Mobile WeldStar series, you can overcome these limitations of traditional TIG and MIG welding. Our laser welding technology offers a more precise, cleaner, and efficient welding solution, suitable for a variety of materials and thicknesses, ensuring consistent weld quality and attractive appearance.
Features |
Traditional Welding |
Mobile WeldStar Laser Welding |
|---|---|---|
| Welding Speed | Normal | Faster – 4x Faster than TIG Welding |
| Welding Quality | Depends on operator’s experience | Consistently high quality results |
| Learning Difficulty | Difficult | Easy and quick to learn |
| Pre-Weld Preparation | Critical and time consuming | Minimal and fast |
| Material Flexibility | Limited by consumable changes | Broad, with no setup required |
| Heat Affected Zone | Large | Small |
| Warping and Deformation | Prone to deformation | Less prone to deformation |
| Swing Welding | Not available. | Available – Weld seam width up to 8mm. |
