EETO-FGT GANTRY TYPE LASER CUTTING MACHINE
EETO-FGT Engineered for High-precision, Large-format Metal Cutting
The FGT series is specially designed for cutting large-format thick
plates. Compared with traditional plasma cutting machines, laser
cutting has higher precision and faster speed.
plates. Compared with traditional plasma cutting machines, laser
cutting has higher precision and faster speed.
FGT Series Introduction
Traditional integrated laser cutters can deform from the high heat generated during cutting, which affects their accuracy over time. The new split design prevents this issue.
Different from the steel rail transmission used by the gantry plasma cutting machine, FGT’s gantry cutting machine adopts high-precision rack and pinion transmission, with higher acceleration, cutting
accuracy and cutting speed.
Modular cutting tables allow you to easily replace them without
resorting to manufacturer, and you can even cut your own cutting
table to save shipping costs.
Thanks to the design of the mechanical structure, the ultra-large format cutting machine can also be transported in ordinary standard containers, which greatly saves transportation costs and space.
EETO-FGT(Gantry Cover) Series Images
Technical Data
| Model | FGT13030 | EXTREME CUTTING CAPACITY(Straight Cut) | |
|---|---|---|---|
| Laser Power | 3K20KW | Mild Steel | 75mm |
| Straight Cutting Area | 13000*3000mm | Stainless Steel | 70mm |
| Bevel Cutting Area | 12000*2000mm | CAluminium | 60mm |
| Acceleration | 0.6G | WBrass | 20mm |
| Maximum Speed | 60m/min | / | / |
| Positioning Accuracy | ±0.05mm | / | / |
EETO-FGT Series Laser Cutting Machine Videos
Watch the EETO-FGT gantry laser cutting machine in action. Explore its heavy-duty design and see real X-type, Y-type, and K-type bevel cutting demonstrations for metal plate fabrication.
X-Type Bevel Cutting
Y-Type Bevel Cutting
K-Type Bevel Cutting

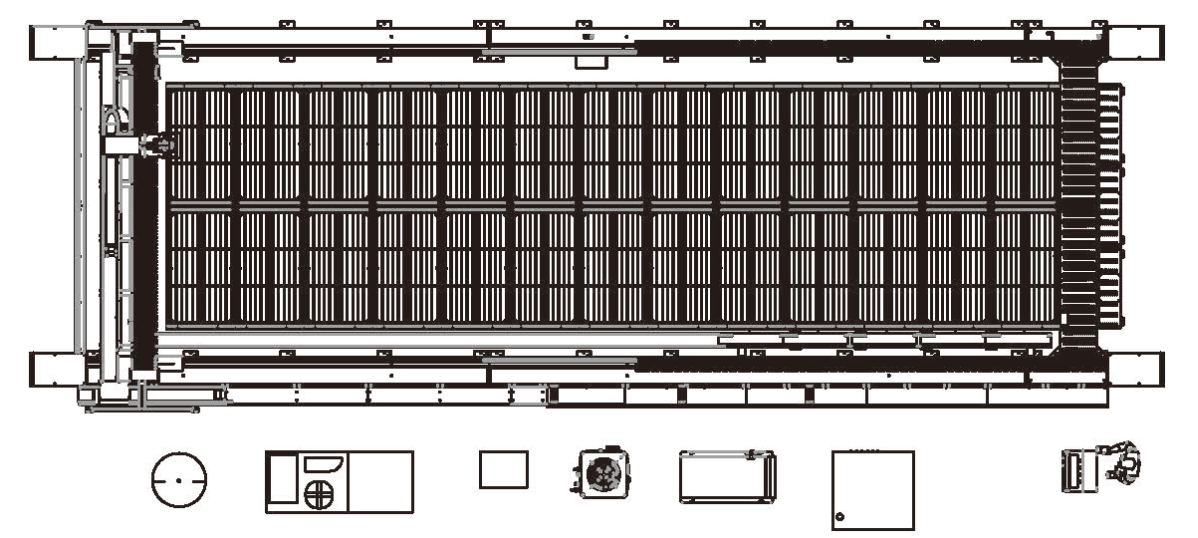

Machine Layout

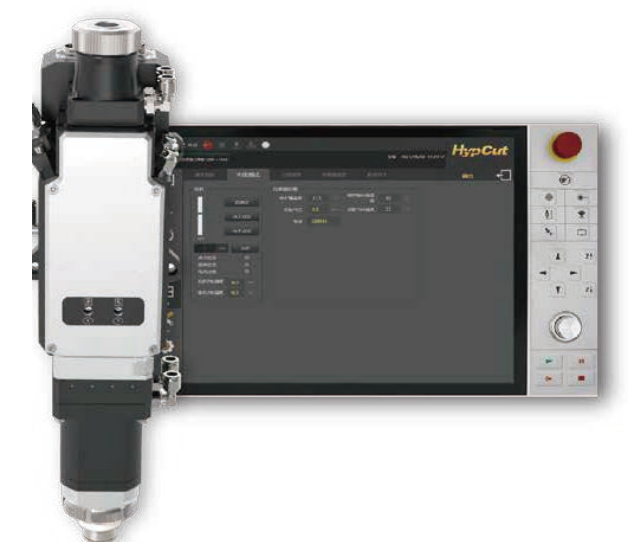

Cutting Head
Closed-loop Monitoring
Equipped with multiple built-in sensors, it provides real-time, closed-loop intelligent monitoring for rapid problem diagnosis and proactive warnings.
Water Cooling
Full body water cooling. Water cooling covers 90% of the cutting head to improve cutting stability.

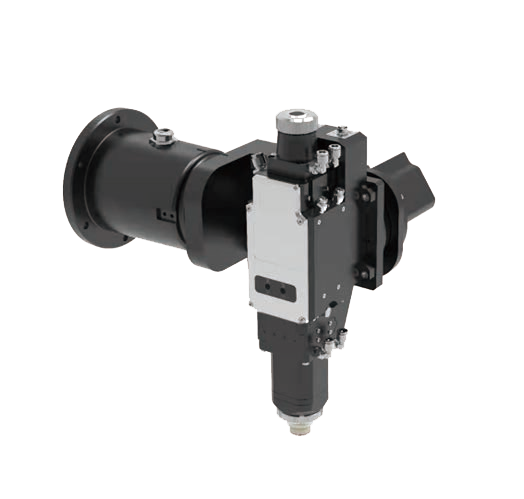

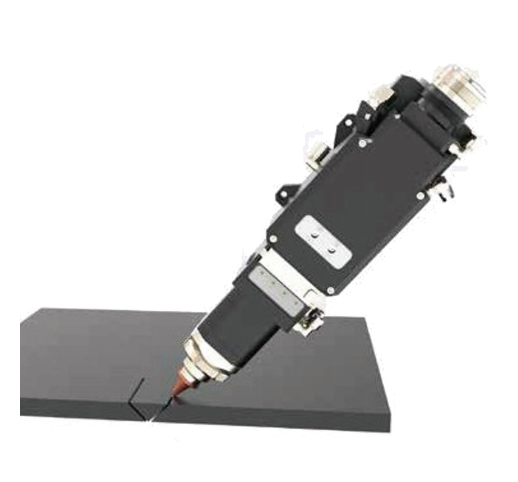

Slant Cutting
The AB swivel axis supports cutting V, Y, X, and K grooves up to ±45°. This feature reduces processing steps, cuts costs, and boosts efficiency.
Machine Configuration

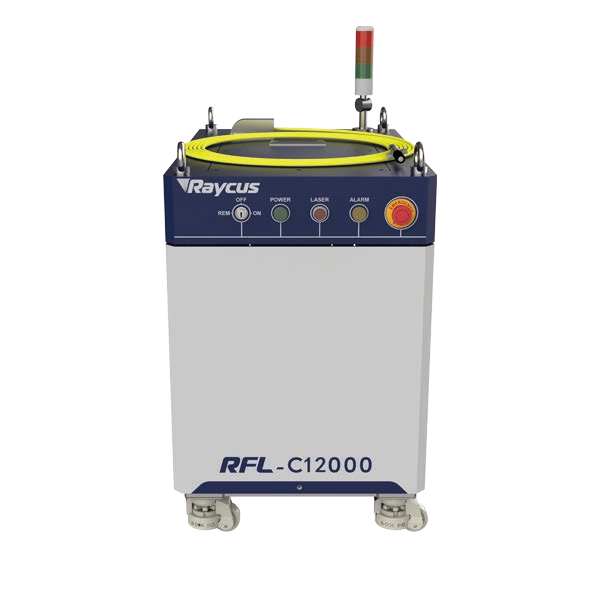

RAYCUS Laser Source 12KW
Superb Laser Beam Quality,Stable and High Efficient Output
It has the advantages of high electro-optical conversion efficiency (>40%), good beam quality, high energy density, wide modulation frequency, strong reliability, long service life, and maintenance free operation, etc.

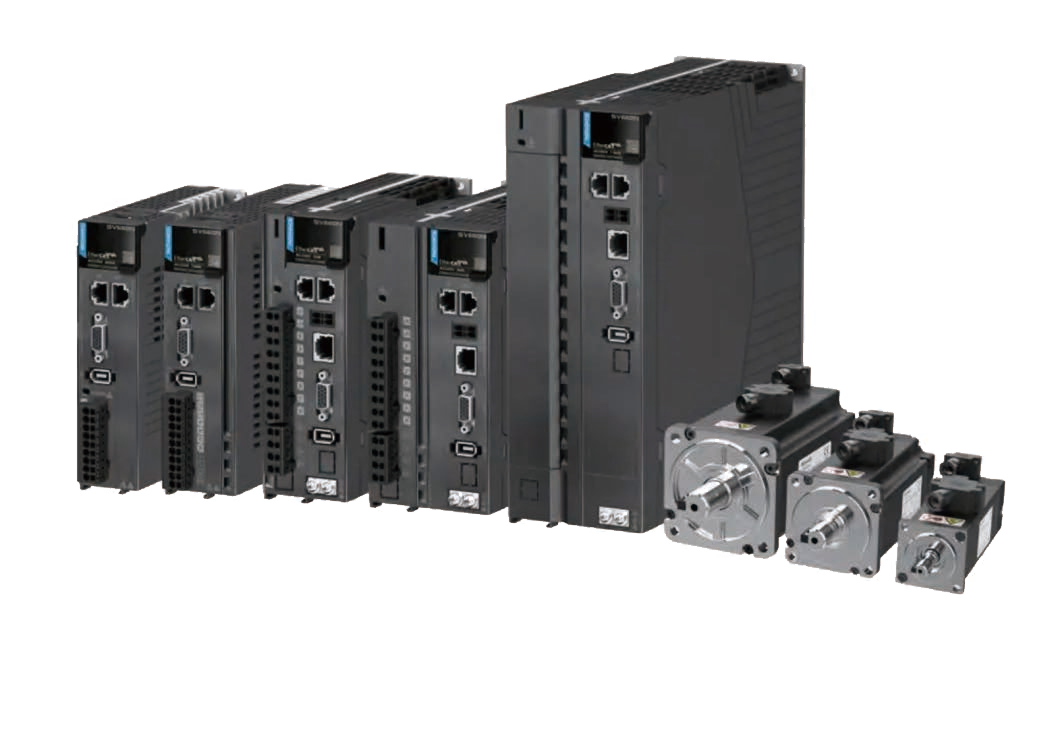

INOVANCE Servo Motor
High Reliability,High Precision
Industry-leading 3.1kHz bandwidth significantly improves settling time,tuning-less capability reliably tunes servo system automatically,powerful package of tuning functions include compensation for the effects of machine inertia, vibration, friction, and ripples in output.

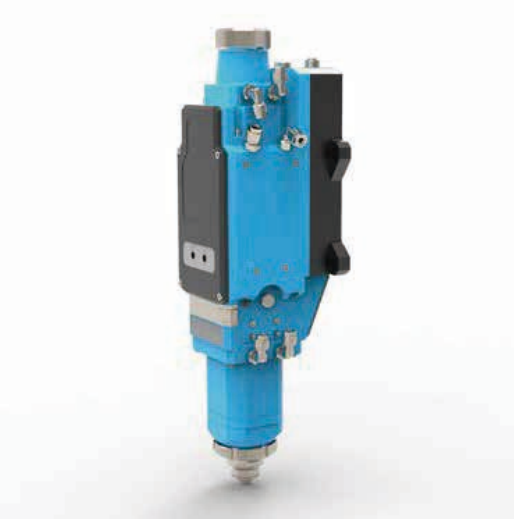

BOCI Cutting Head-BLT462
Multi-sensory Smart Cutter,Easy Maintenance
The BLT 442 smart cutter is designed for ultra-high power laser equipment, offering stable cutting and simple installation. Its key features include an optimized optical lens, double dust prevention, Smart Piercing, and Auto Recut to meet high standards.

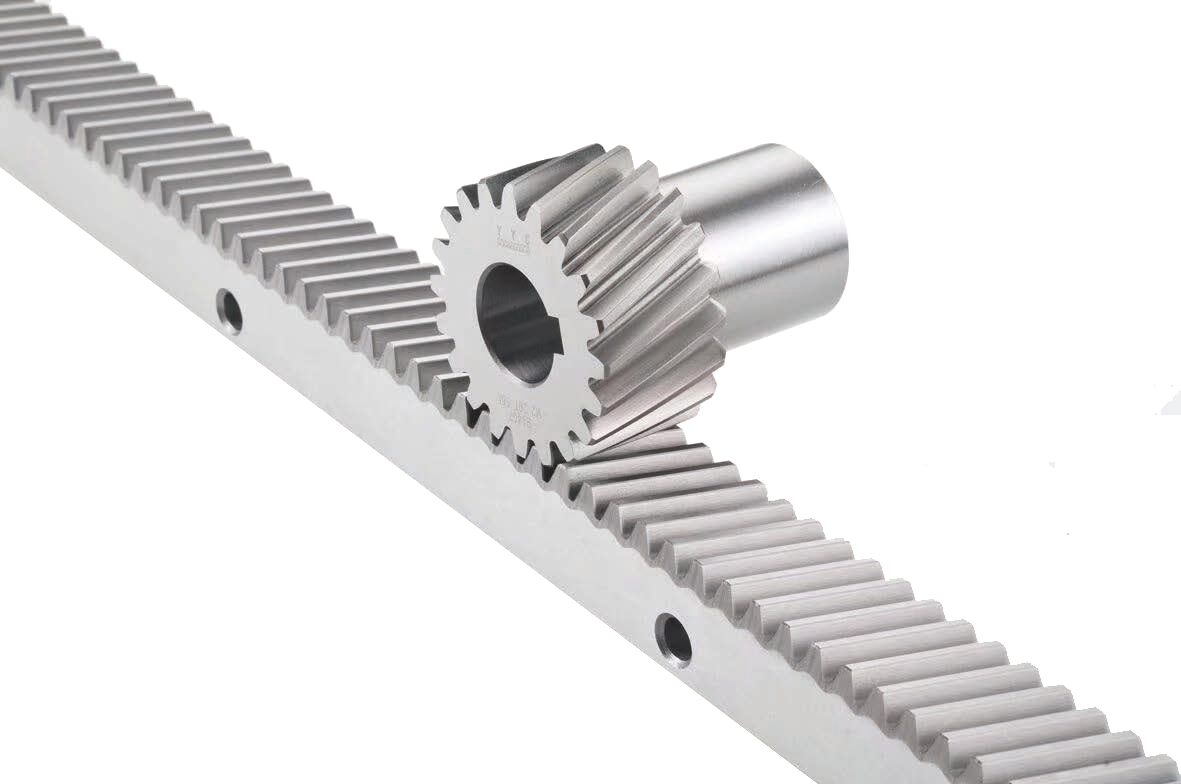

YYC Rack and Pinion
High Precision ,Good Durability
For over 50 years, YYC Machinery Co, Ltd has been globally recognized for its quality rack and pinion systems. Their innovative design ensures high precision with zero backlash, ultra-low friction for high-speed transmission, and an unlimited linear stroke length.

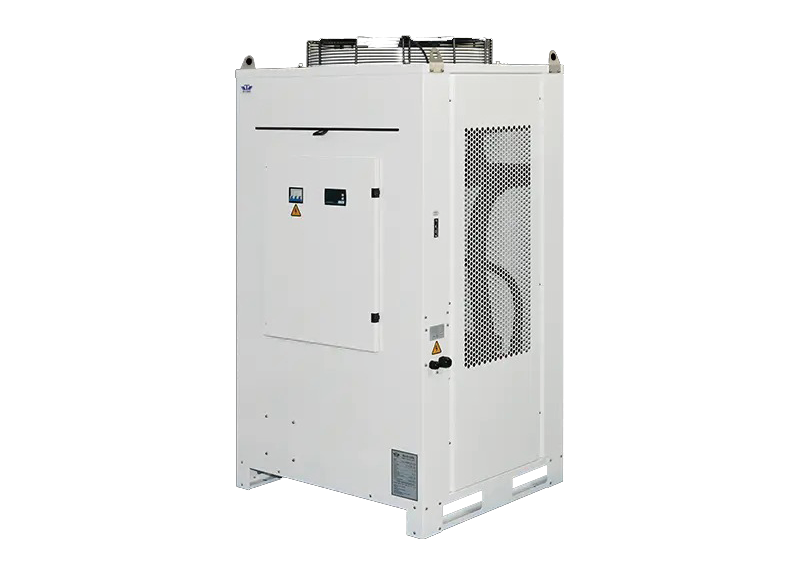

Tongfei Cooling System
High Efficient Water Cooling ,Multiple Protection
Our high-efficiency water-cooling system provides maximum cooling with low power consumption. As a leading manufacturer with a high market share, we offer trustworthy quality and multiple security protection mechanisms.

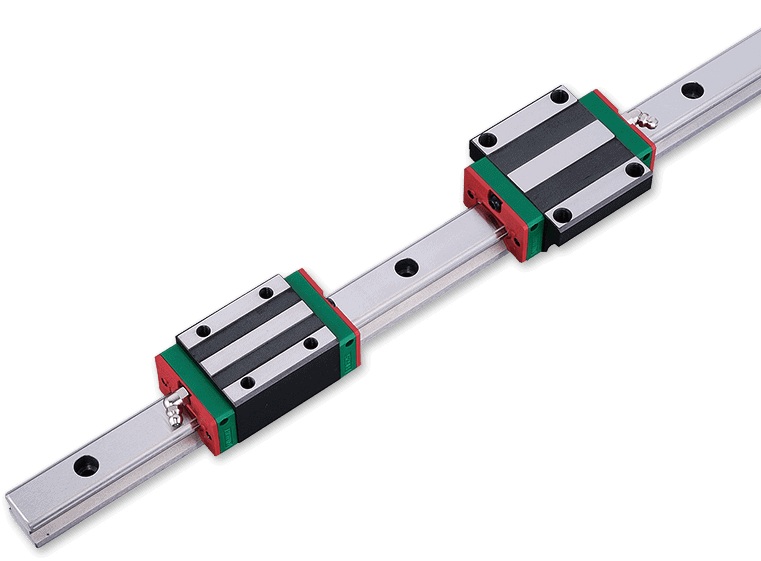

CSK Linear Guide
High Rigidity,Four-way Equal Load
The four ball trains are designed with a 45° contact angle, allowing the component to bear loads equally from all directions while maintaining high rigidity and loading capacity.
FLS vs. FGT vs. FGT 2-in-1: Which Laser Cutting Machine Is Right for You?
Compare machine structure, cutting capabilities, bevel processing, and typical applications to find the right EETO laser cutting solution for your production.
FLS Series
Efficient Flat Sheet Cutting
Featuring an integrated machine bed, the FLS Series is designed for efficient flat sheet and plate cutting without bevel processing. Its rigid one-piece structure supports high-speed motion and general metal fabrication.
Best For
General sheet metal fabrication and
flat cutting applications.
View FLS Series →
FGT Series
Heavy Plate & Bevel Cutting
Built with a separated worktable and gantry rail structure, the FGT Series is designed for large-format heavy plate processing. It is the recommended EETO solution for bevel cutting applications, supporting bevel angles up to 55 degrees depending on configuration.
Best For
Shipbuilding, heavy plate fabrication,
and bevel cutting requirements.
Explore FGT Series →
FGT 2-in-1 Series
Heavy Plate & Profile Cutting
Combining a separated worktable and gantry rail design with additional single-side cutting capabilities for square tubes and structural profiles. This model is designed for workshops processing both thick plates and structural profiles. Bevel cutting is not recommended due to potential interference.
Best For
Structural steel fabrication and
combined plate and profile processing.
View FGT 2-in-1 →
Technical & Application Comparison
| Feature | FLS Series | FGT Series | FGT 2-in-1 |
|---|---|---|---|
| Power Range | 1.5–30kW | 12–60kW | 12–60kW |
| Machine Structure | Integrated machine bed | Gantry rail with separated worktable | Gantry rail with separated worktable |
| Primary Processing | Flat sheet and plate cutting | Large-format heavy plate cutting | Heavy plate and single-side square tube / profile cutting |
| Motion Performance | Designed for high-speed flat cutting | Optimized for heavy-duty plate processing | Optimized for combined plate and profile processing |
| Bevel Cutting | Not Recommended | ±45° / ±55° | Not Recommended |
| Structural Profiles | — | — | Single-Side Cutting |
| Best For | General metal fabrication | Shipbuilding and heavy plate bevel cutting | Structural steel and combined plate / profile processing |
Note: Machine configurations and processing capabilities depend on the selected equipment and application. Bevel cutting is primarily recommended for the FGT Series. For FGT 2-in-1, bevel cutting is not recommended due to potential mechanical interference.
Not Sure Which Machine Fits Your Application?
Tell us your material type, thickness, plate dimensions, and whether you need bevel or profile cutting. The EETO team can help recommend a suitable machine series and configuration.
