TUBE LASER CUTTING MACHINE | FPC-E-90

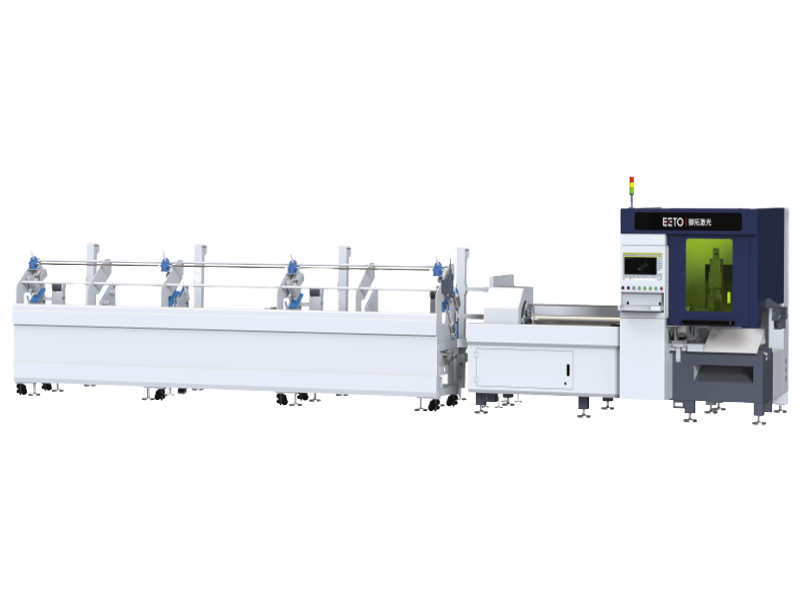

FPC-E Fiber Laser Tube Cutter | Precision Cutting for Pipes ≤90mm
The FPC-E Series is engineered for square, round, rectangular, oval metal tubes, pipes, and profiles. It’s ideal for automotive exhausts, furniture frames, and fitness equipment processing requiring burr-free edges.
High Cost-Performance Ratio
01
Minimum Footprint Design
Engineered to save your shipping costs and optimize factory space. The compact structure maximizes utility without compromising performance.
02
Plug & Play Integration
Almost plug and play with no high installation charges. Simply match the machine with your loading system and connect utilities—power, gas (including lubrication oil and water).
03
Mature Supply Chain
Benefit from standardized production of large-scale orders. Our mature supply chain significantly minimizes both procurement and manufacturing costs for you.
Technical Data
| Specification | Details |
|---|---|
| Model | FPC-E-90 |
| Laser Power | 1.5-3Kw |
| Tube Loading Length | 6000mm |
| Minimum Waste Length | 40mm |
| Max Single Tube Loading Weight | 90Kg |
| Positioning Accuracy | ±0.03mm |
| Combined Travelling Speed | 150m/min |
| Acceleration | 1.5G |
| Power Supply | 380V, 50/60Hz |
| Power Consumption | ≤11Kw |
| Machine Body Weight | 2.5T |
Tube Processing Range

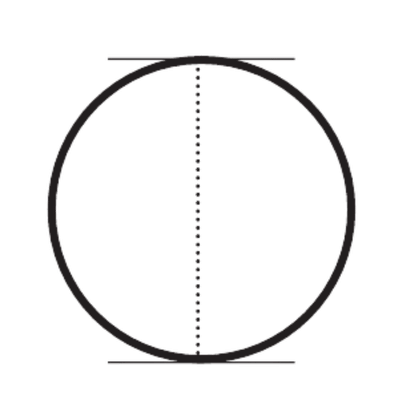

| Round | Square | Rectangle | Oval | Triangle |
 |  |  |  |  |
| 10-90mm | 7-90mm | 10-90mm | 10-90mm | 10-90mm |
Machine Configuration
| Component | Specification/Brand |
|---|---|
| Laser Source | Raycus / MAX |
| Laser Head | BOCI BLT310T |
| Control System | Fscut 3000S |
| Chiller | Hanli |
| Servo Motor | INOVANCE |
| Motor Reducer | DESBOER |
| Linear Guide | JINTE |
| Rack and Pinion | JINTE |
| Chuck | RunYuan / Beut |
Optional Items
| Item | Details |
|---|---|
| Semi-auto Loading System | No Storage |
| Fully-auto Loading System | With 1.5 Ton Storage |
| Voltage Stabilizer | 30Kva |
| Air Compressor | 15kw, 1.58Mpa, 1.5m³/min |
| Light Curtain | LN Tech |
| Dust Collector | 5.5KW, 4 Cylinder |
| One-Year Consumable Package | Lens, Nozzle, Ceramic Body |
Customized For Specific Industries
Bathroom & Sanitary Equipment
Precision-engineered fittings and ergonomic solutions for modern bathrooms, combining aesthetics with reliability.
Fitness Equipment
Robust mechanisms and safety-focused designs for gym machines, home workout gear, and rehabilitation devices.
Camping Gear
Lightweight, weather-resistant hardware for tents, outdoor furniture, and portable tools—built for adventure.
Baby Strollers
Safe, smooth-gliding mechanisms and adjustable frameworks to prioritize comfort for children and convenience for parents.
Bicycle Parts
High-strength, lightweight components that enhance performance, from urban commuters to off-road bikes.
Machine Layout

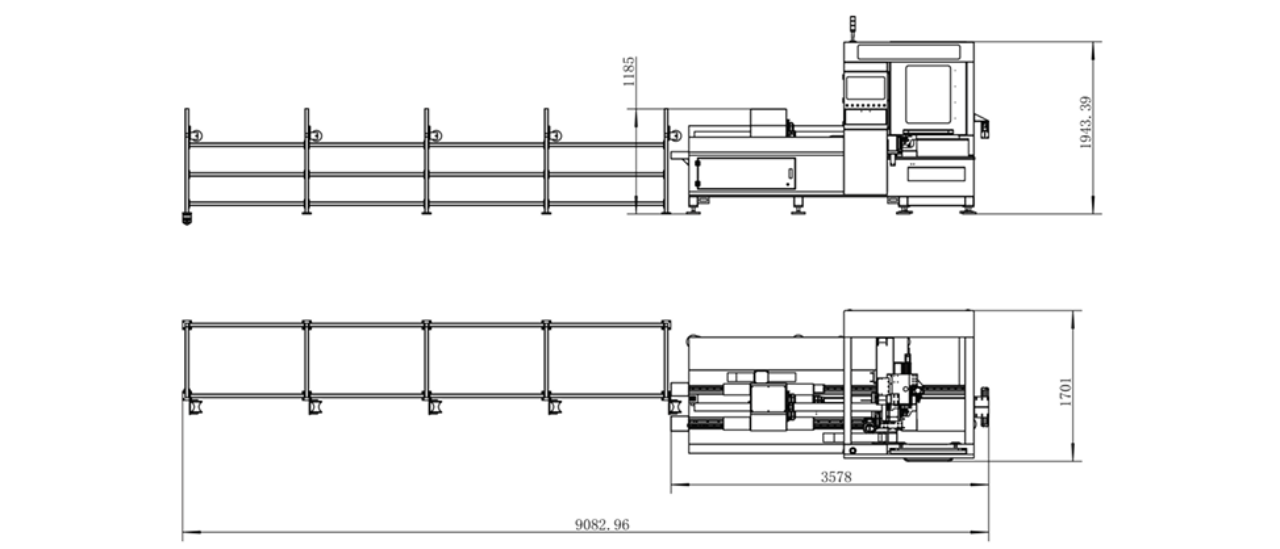

With Manual Loading Rack

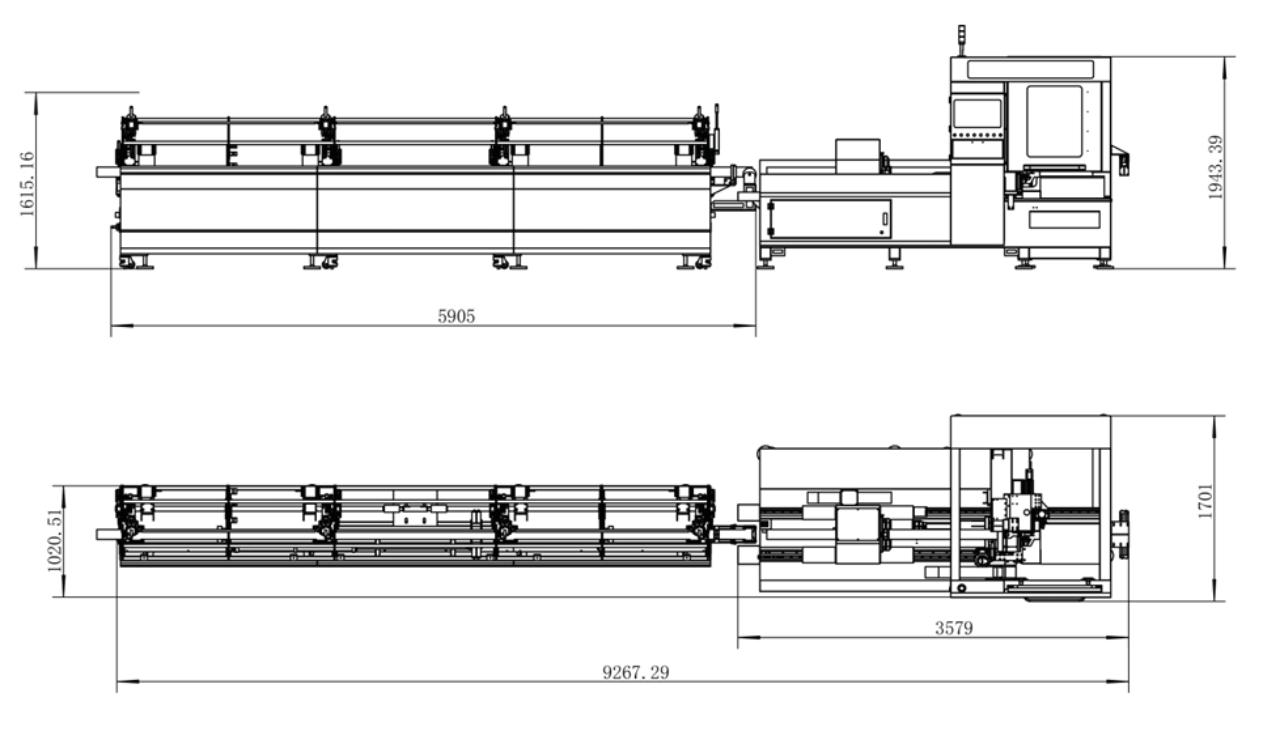

With Semi-Auto Loading System

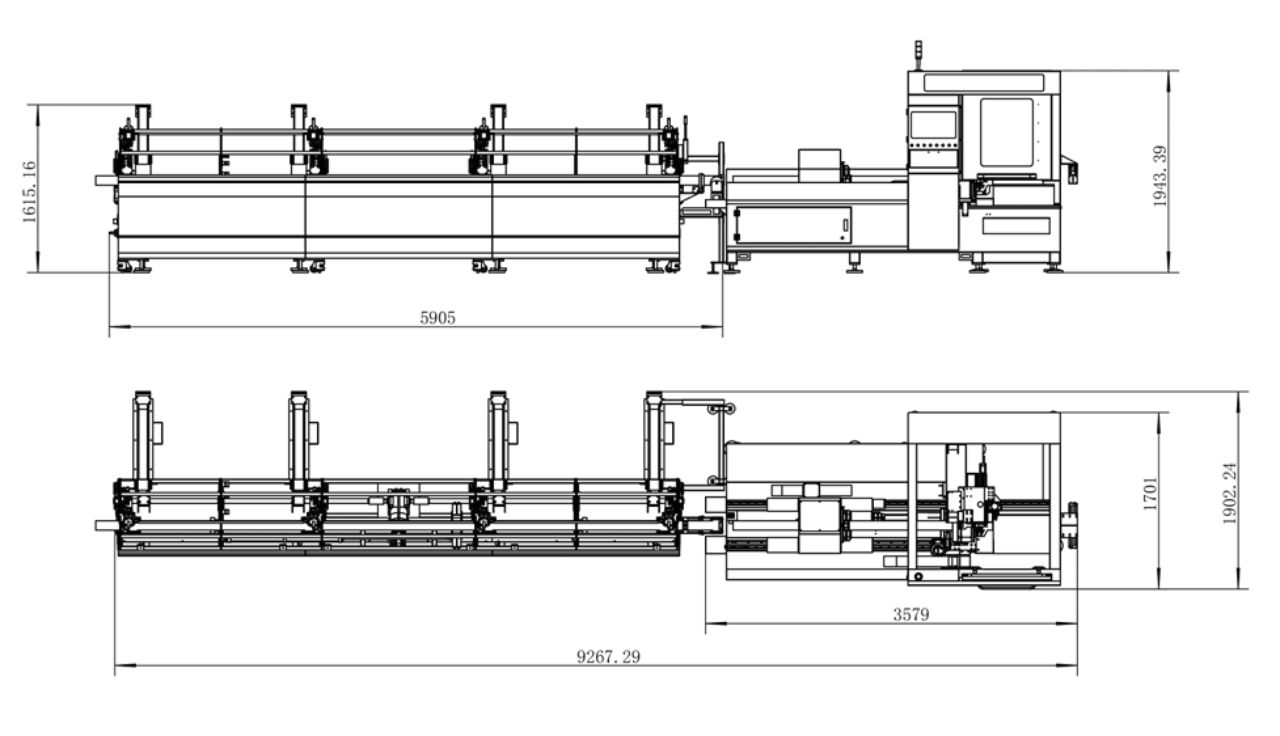

With Fully-Auto Loading System
What We Believe: Details Make Differences
We believe, every details counts for overall machine quality. Delivery, Installation, Operation, Function, Service, We try our best in every aspect for better user experience.

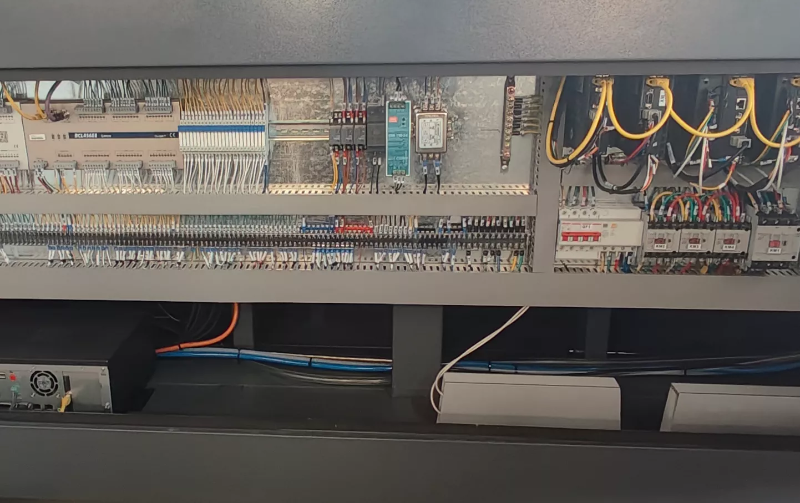

Engineered for Safety & Easy Maintenance
- Neat wiring with full cable labeling for instant troubleshooting
- EU-compliant routing ensures operational safety
- Separated power/control circuits prevent interference

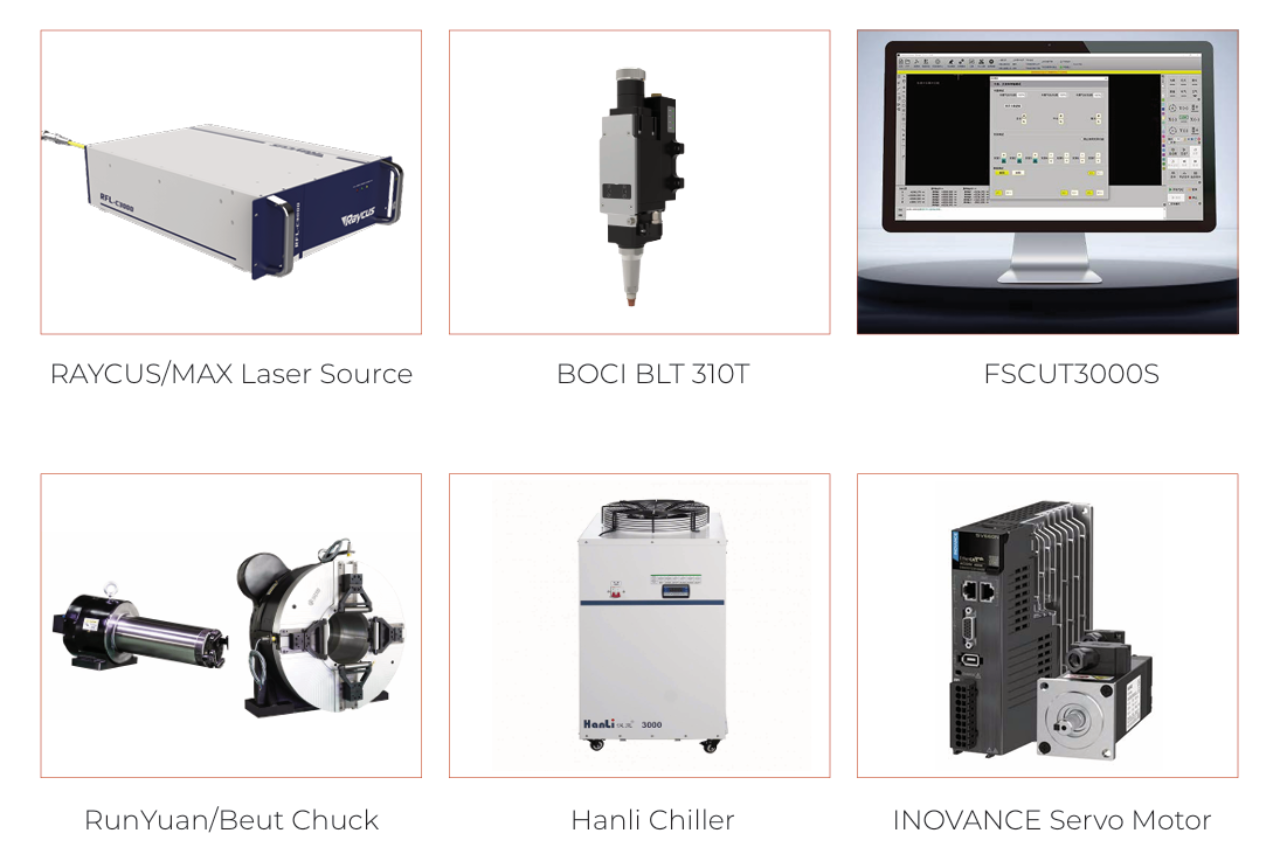

Reliable Components & Quality
