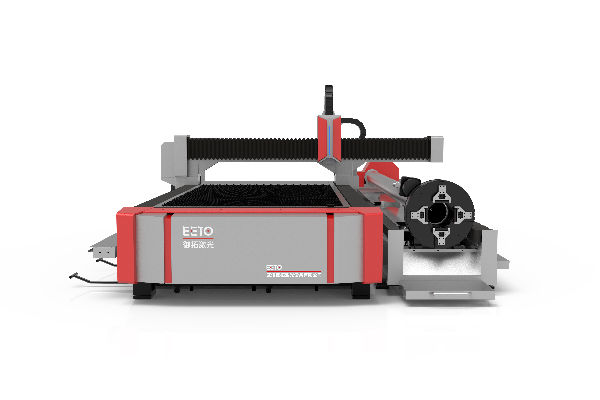

SHEET&TUBE LASER CUTTING MACHINE- FLSP SERIES

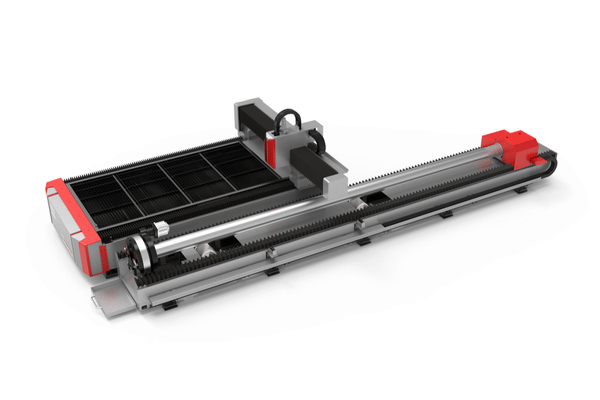

High-Efficiency Fiber Laser Cutter For Metal Sheets And Pipes
The FLSP series is designed for customers with diverse processing needs and limited budgets. With the same set of cutting systems, it can process
both sheet metal and pipes. It offers cost savings, occupies a smaller factory space, and does not compromise on cutting precision and functionality.
It supports a maximum power of 6KW and can cut carbon steel up to 20mm thick, with a processing size of 6000*2000mm for sheet metal.
both sheet metal and pipes. It offers cost savings, occupies a smaller factory space, and does not compromise on cutting precision and functionality.
It supports a maximum power of 6KW and can cut carbon steel up to 20mm thick, with a processing size of 6000*2000mm for sheet metal.
Versatile Sheet & Tube Laser Cutting Solutions – FLSP Series

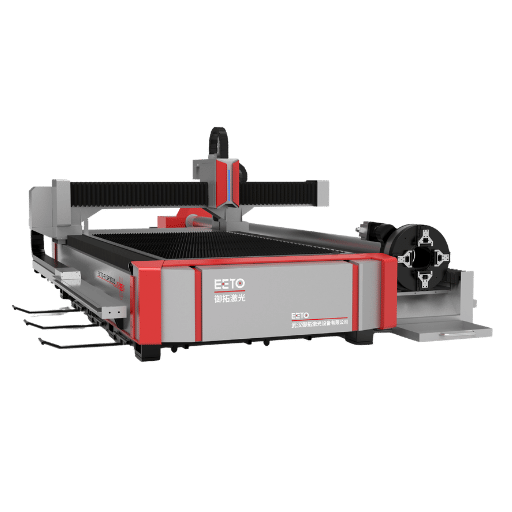

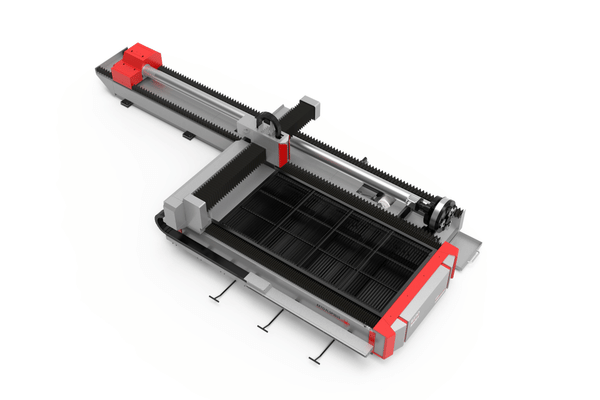

Core Features & Configurations: EETO-FLSP (Open Type)
Standard Features
- Sheet&tube cutting
- Max 6 meters tube loading
- Low investment and operating costs
- Small footprint
- Follow-up exhaust system
- Two cams support
- High electro-optical conversion efficiency
- High accuracy rack and pinion system
- Robust machine body
- Independent electrical cabinet
- Dual cooling system
- Nozzle cleaning function
- Smart gas control system
- Auto lubrication system
Upgrade Function
FLSP SERIES SPECIFICATIONS
PERFORMANCE PARAMETERS |
||||
|---|---|---|---|---|
| Laser Power | 6 kW | |||
| Acceleration | 0.8 G | |||
| Position Speed | 80 m/min | |||
| Position Accuracy | 0.03 mm | |||
| Repeatability | 0.05 mm | |||
DIMENSIONS |
||||
| Sheet Working Area (mm) | Tube cutting length (mm) | Length (mm) | Width (mm) | Height (mm) |
| 3050 × 1530 | 6000 | 5090 | 4679 | 1872 |
| 6050 × 1530 | 6000 | 8060 | 4679 | 1872 |
| 6050 × 2000 | 6000 | 8060 | 5171 | 1872 |
TECHNICAL DATA |
||||
| Gas pressure range | Oxygen: 0-8 bar, Nitrogen: 0-25 bar, Air: 10-25 bar | |||
| Transmission | X, Y axis rack and pinion; Z axis ball screw | |||
| Control Panel | 1920×1080, 19 inch | |||
| Power supply | 380V AC 50/60Hz | |||
| Power consumption | 6kW – Max 44Kva | |||
*The actual installation needs to consider the layout of the customer’s site. The below parameters are for reference only.
Precision Engineered Excellence
Advanced Core Systems

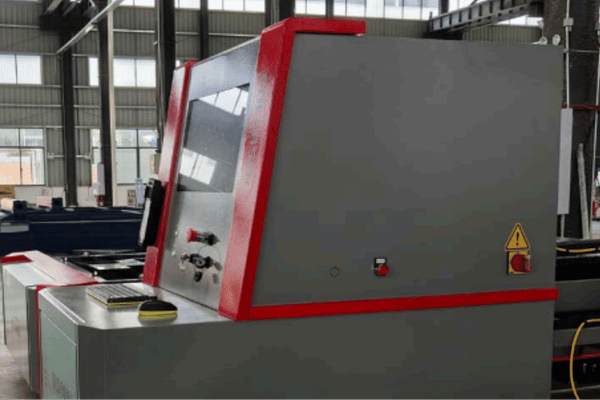

SEPARATED CABINET DESIGN
All-in-one machines are commonly used in the market to save space and transportation costs. However, this design presents challenges in equipment maintenance due to the complex cables installed on the bed. In contrast, we prioritize the use of separate electrical cabinets, ensuring easier maintenance and protecting precise parts from damage.

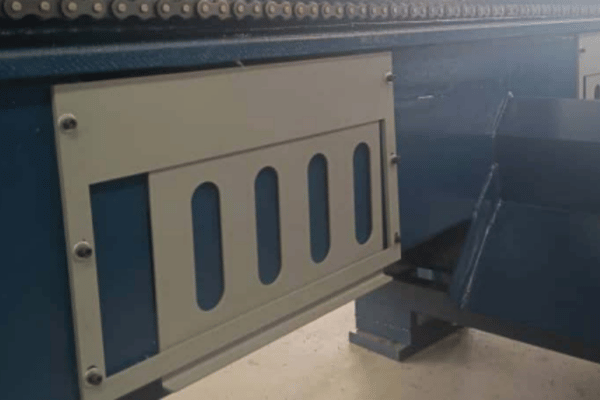

HIGH EFFICIENT SUCTION SYSTEM
With the multi-chambers high efficient suction system, the suction position can be following the movement of the cutting area, thus the suction can always stay high and good effect.

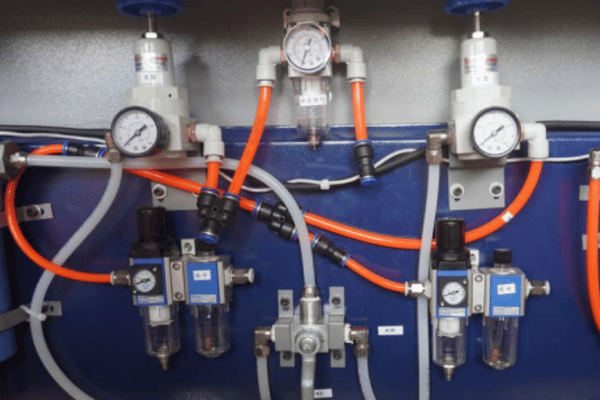

GAS CONTROL SYSTEM
The gas circuit control system can help filter impurities in the gas, switch between different cutting gases more conveniently, and alarm in time when the gas is exhausted to protect the cutting head.
CAM SUPPORT

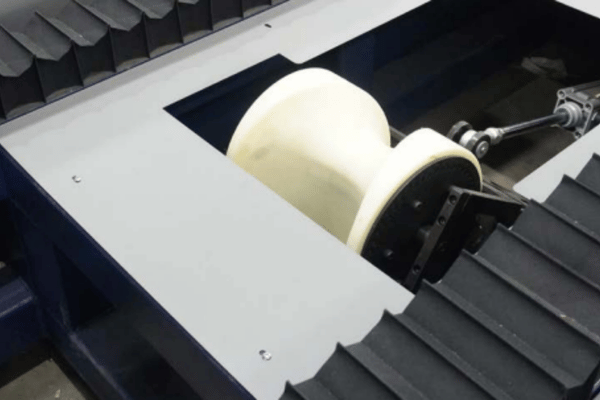

The cam can be manually adjusted based on different pipe shapes to achieve better support, resulting in higher cutting precision and improved stability during rotation.
CUTTING HEAD – EETO-FLSP (Open Type)

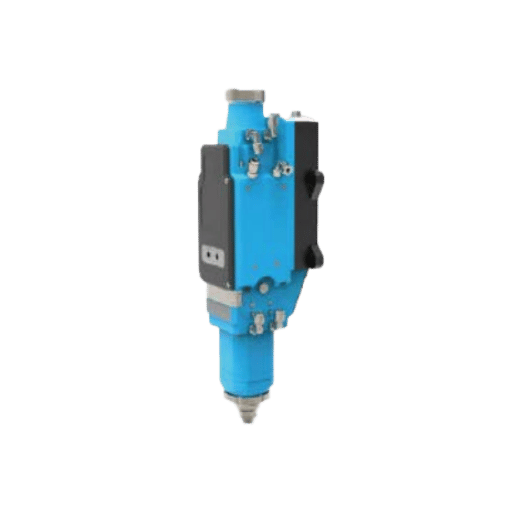

Water-cooled design covering 90% of the optical path

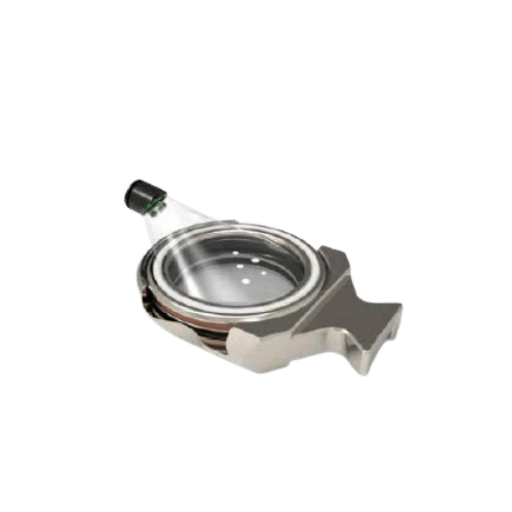

Real-time monitoring status of protective lens

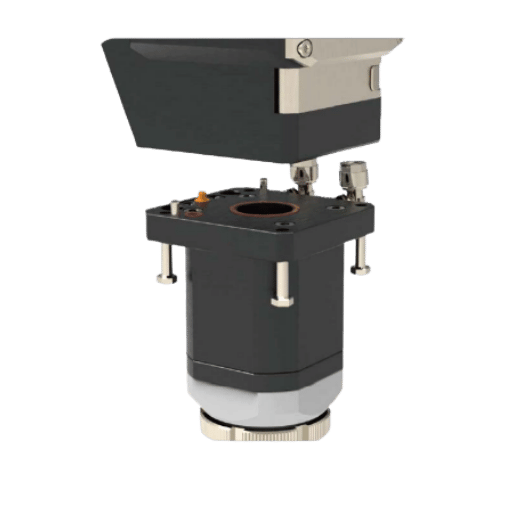

Convenient maintenance when collision happens

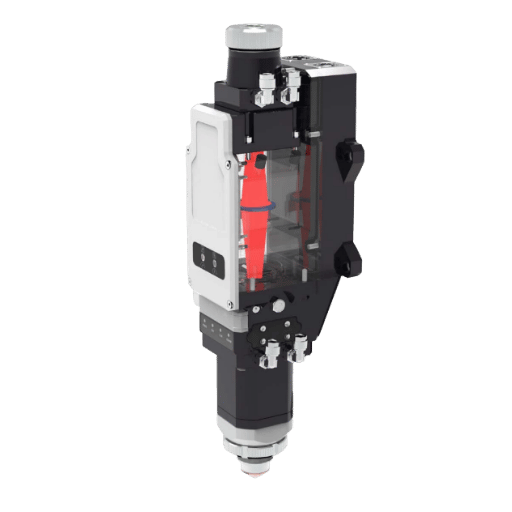

Focus and Cooling Advanced Features
- Focus auto adjustment
- Cutting nozzle gas cooling
- Multipe-sensors water cooling
- Reduce waiting time for focus zooming

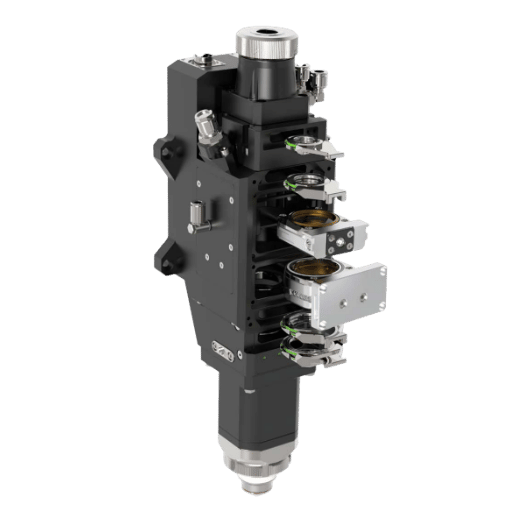

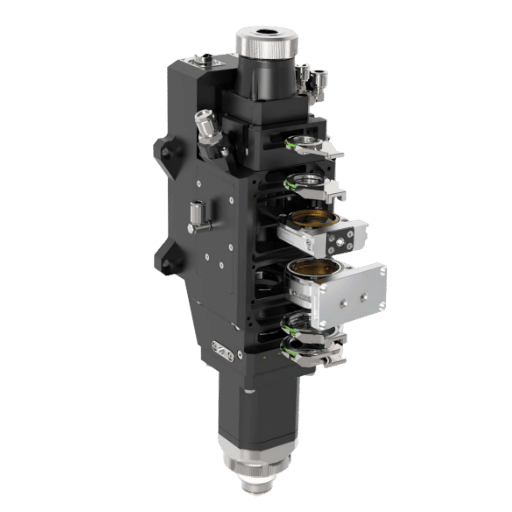

Quick-detachable design, easy and fast to replace lenses
EETO-FLSP (Open Type) CNC Cutting Software: Precision for Sheet & Tube

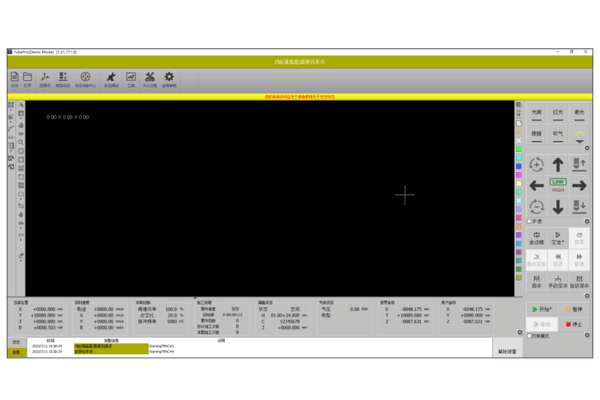

Fscut 3000S
Sheet & Tube Cutting
Support various profiles cutting
Better cutting accuracy
Compensate for systematic cutting deviations
Solve excessive power burning through to the opposite side

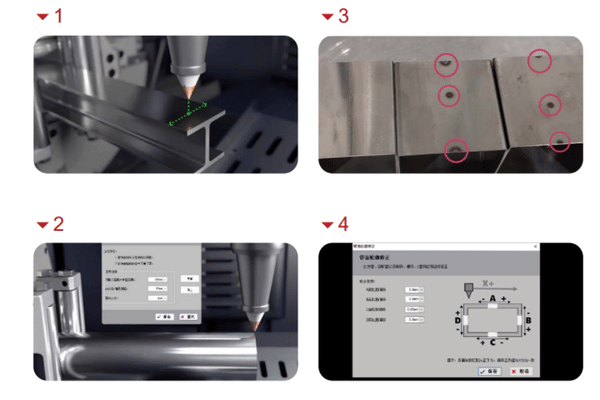

Upgrades from FSCUT 3000C
Support various profiles cutting with improved accuracy.
One click to align the cutting head with tube end to minimize waste.
Solved big power burnt through opposite side at initial cutting ponit and end cutting point.
For workpieces with regular surface deviation, it can effectively compensate for systematic cutting deviations, reduce the accuracy requirements for raw materials, and minimize waste.
PNEUMATIC CHUCK SOLUTIONS

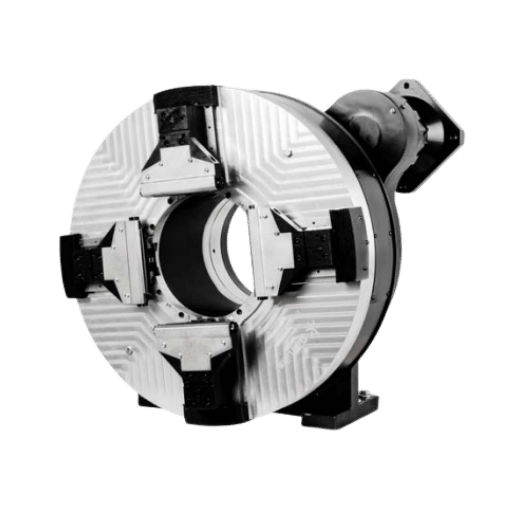

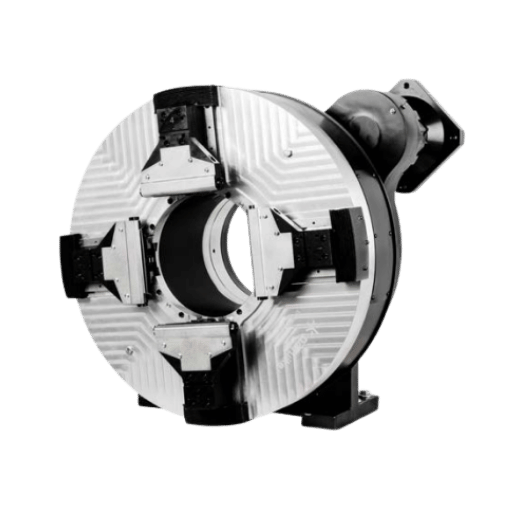

Front Chuck
Full-Stroke
Full-stroke clamping, automatic precision centering , rapid automatic processing
Strong Stability
Integral built-in drive structure to improve transmission accuracy and stability
Gear Built-in, One-piece Casting
Avoid cutting dust from entering,one-piece casting, stable installation of reducer
Low Rotating Inertia Fast speed
Use the same power motor, fast acceleration, low application cost
Less Tailing
The rear chuck can be extended into the matching front chuck

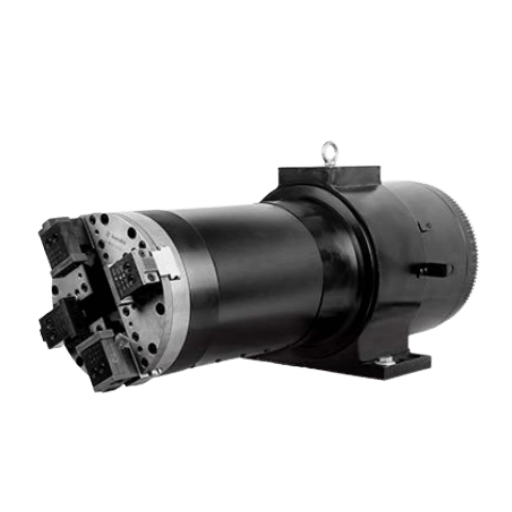

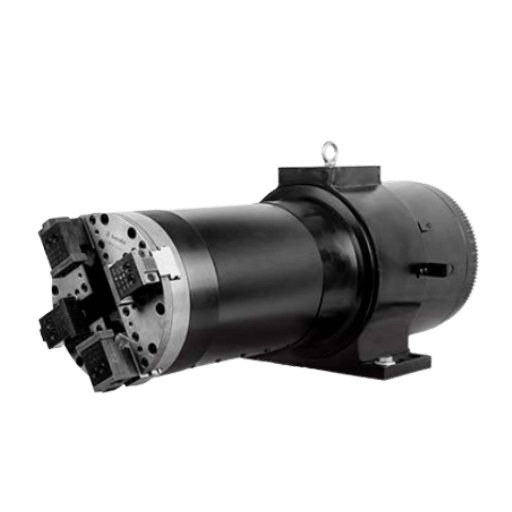

Rear Chuck
Low Rotating Inertia
Meet the small pipe fast cutting
Convenient Application
Large clamping stroke of rear card, few types of jaws,easy to use
All-in-one Design
Multi-angle installation of the reducer can be realized
Position Detection
Support the detection of the maximum jaw opening and minimum clamping position
Special-shaped Pipe Clamping
Optional clamping claw for various profiles to keep the pipe from slipping
TUBE(PROFILE) CUTTING CAPACITY
| Cutting diameter[mm] | φ20-φ160[round tube], 125×125[square tube] |
| Processing tube(profile) shapes | round, square, oval, triangle, oval, angle bar, U-bar, H beam |
| Max single tube loading weight[kg] | 180 |
| Rotary speed [rpm] | 150 |
| Repeatability[mm] | ≤0.1 |
| Thickness of tube[mm] | ≥1 |
| Max loading length[mm] | 6000 |
Precision Engineering: The Core of EETO-FLSP (Open Type)
MACHINE BODY

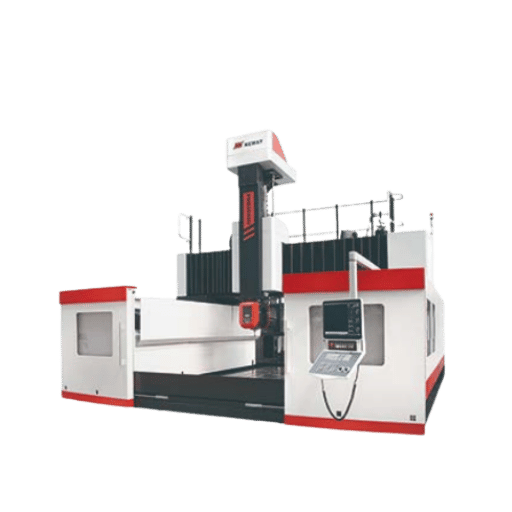

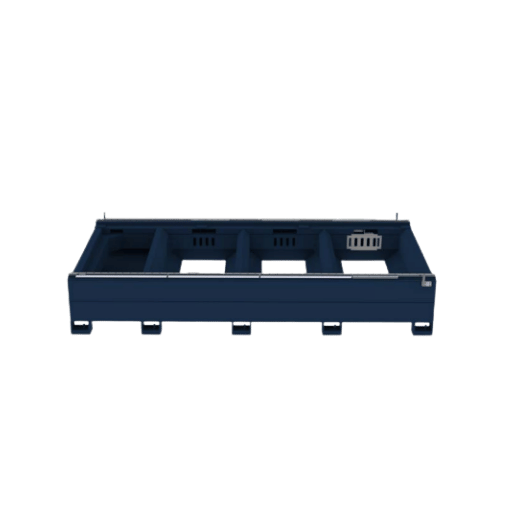

The cutting accuracy of laser equipment largely depends on the precision of the body itself. We utilize advanced 5-axis gantry milling machines, which achieve a processing accuracy of less than ±0.02mm. Additionally, our beds undergo a high-temperature annealing process at 600℃ for 12 hours, effectively eliminating welding stress and ensuring longterm cutting stability without deformation.
DYNAMIC PERFORMANCE

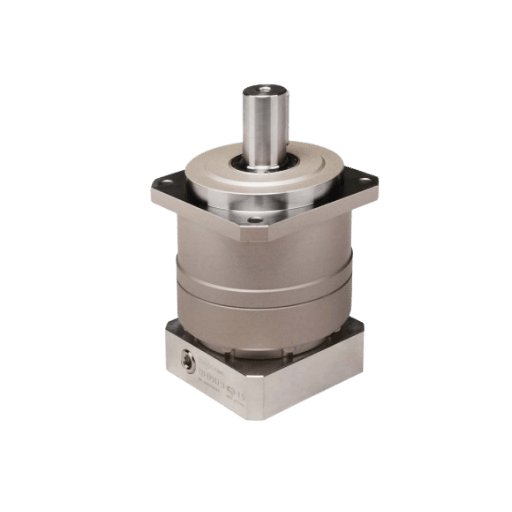

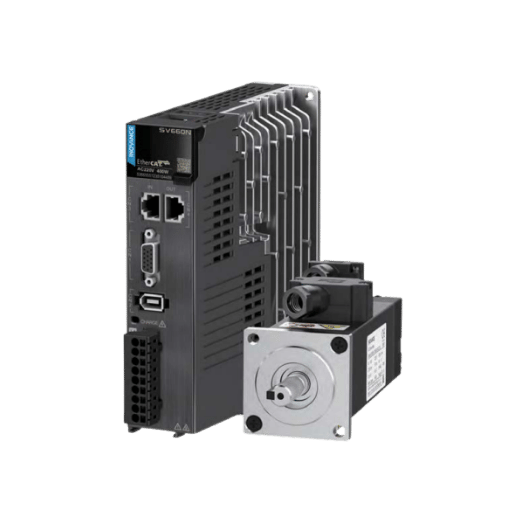

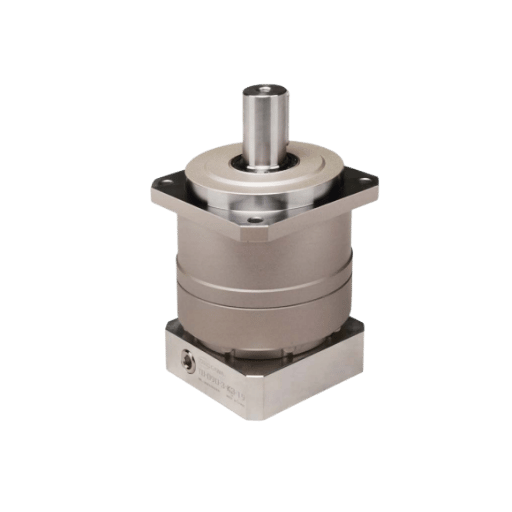

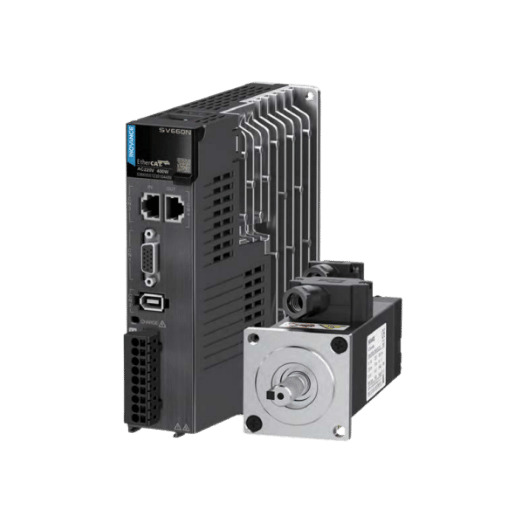

Innovance servo motors provide the strong power to drive,Tomogawa Reducers offers superior torque control, enabling precise positioning and movement. Together, they bring accuracy and productivity to laser cutting processes.
HIGH ACCURACY

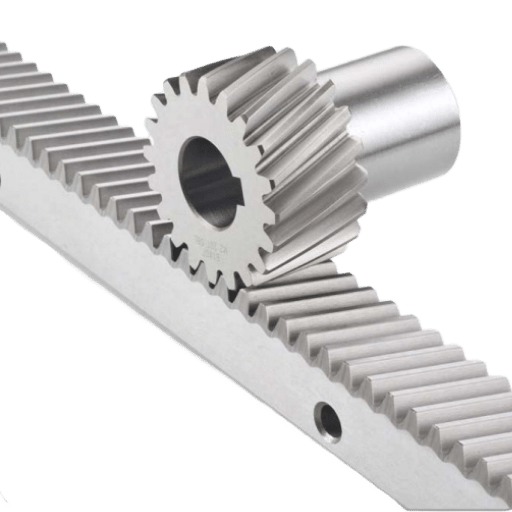

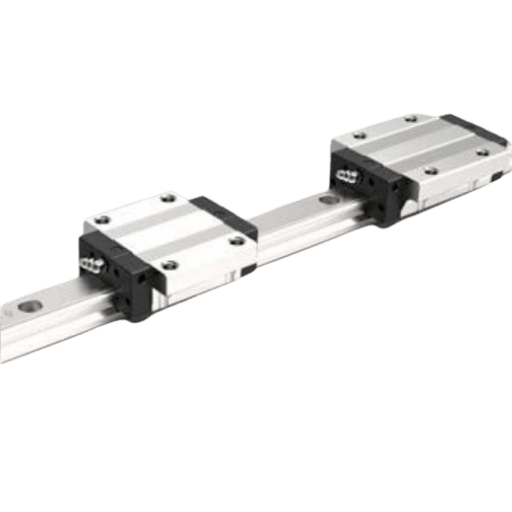

Linear guide designed for high rigidity, high loading capacity with low running noise and maintenance free.Rack and pinion have zero backlash,ultra-low friction for high-speed transmission.We choose from top-tier brands to meet excellent performance and long lifespans.
HIGH RELIABILITY

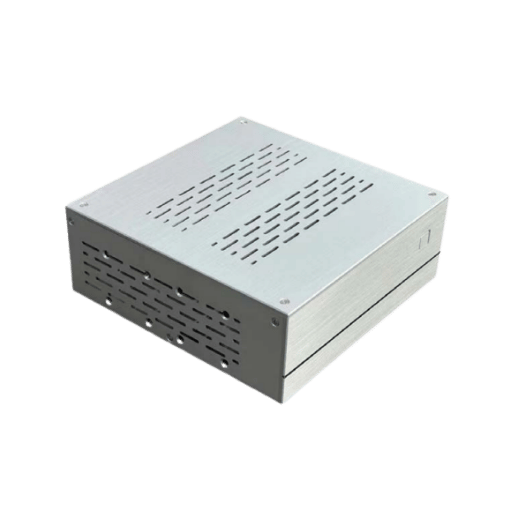

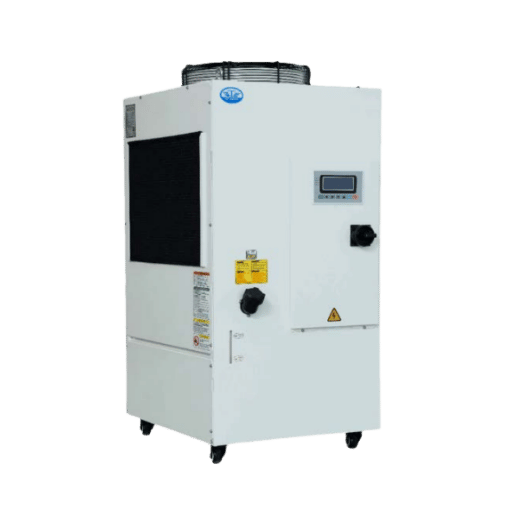

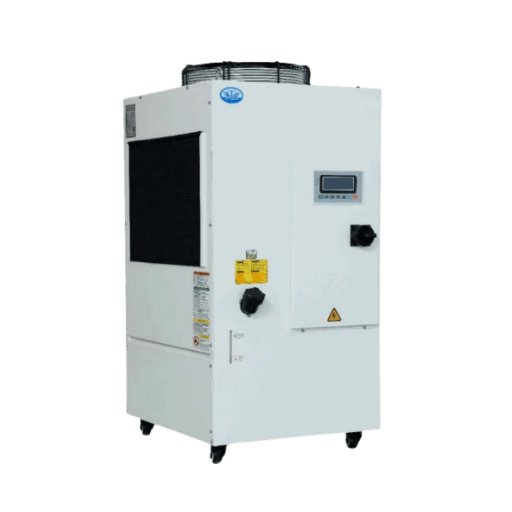

To ensure the smooth and reliable long-term operation of the equipment, we have incorporated a variety of sensors, such as temperature, pressure, and safety protection. Additionally, we strictly adhere to the use of renowned brands for electrical components, thereby minimizing the likelihood of equipment downtime resulting from any possible malfunctions.

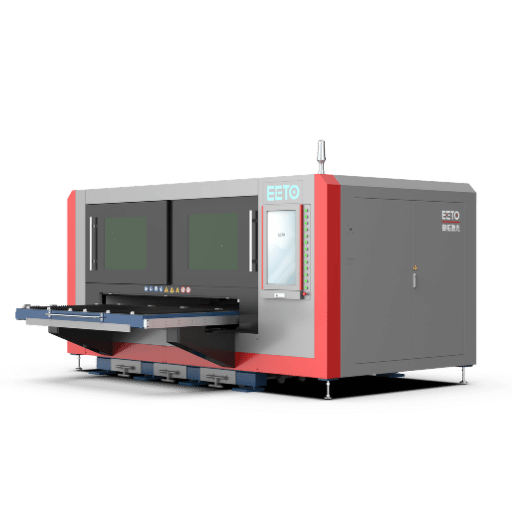

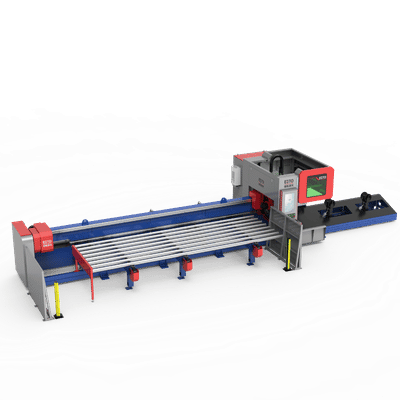

Sheet Metal Laser Cutter
Pipe Metal Laser Cutter

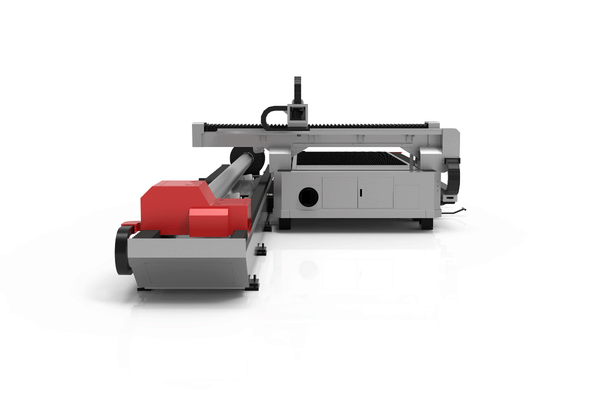

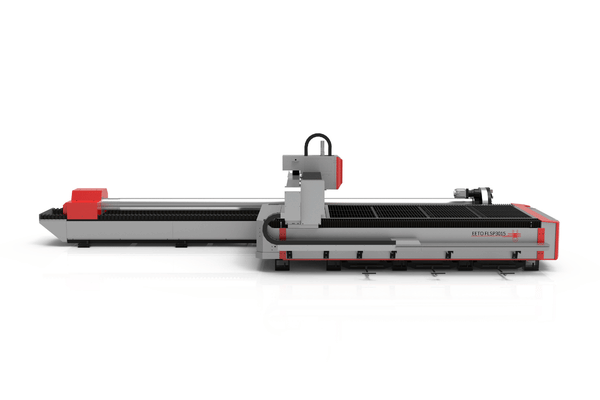

Sheet & Pipe Laser Cutter
