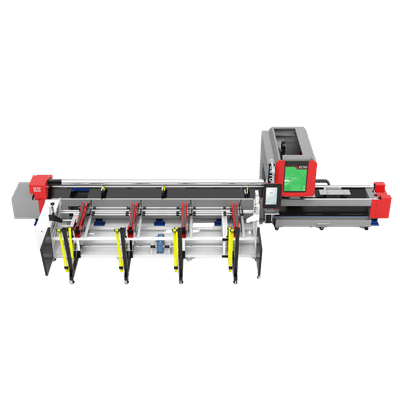

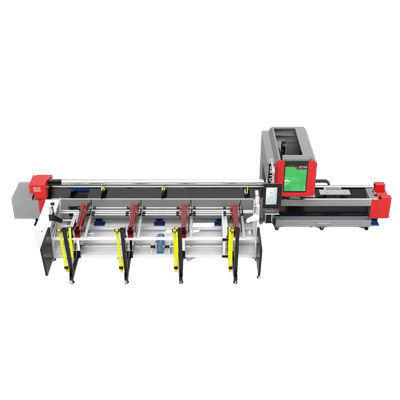

FPC-A Series Pipe Fiber Laser Cutting Machine
FPC-A Series: Precision Laser Cutting for High-Volume Tube Production
The FPC-A Series is a fiber laser cutting machine designed for high-volume production. It offers a precise solution for cutting lines and holes in various metal tubes, pipes, and profiles, including square, round, rectangular, and oval shapes.

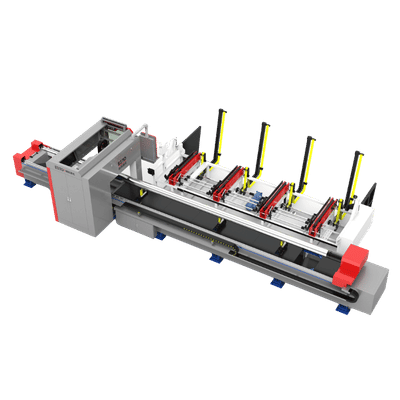

FPC-A Series: Flexible & Customizable Pipe Laser Cutting
Precision and Flexibility Cutting Solution for Tube
Unmatched Flexibility
FPC-A is capable of cutting tubes with diameters ranging from 20-240mm, making it suitable for a wide variety of applications. To adapt to different factory layouts, the machine offers the option of left-side or rightside loading, ensuring seamless integration into your production line. Additionally, it can be equipped with a semi-automatic loading system, further enhancing efficiency and reducing manual labor.
Cost-Effective Solution
We understand the importance of balancing performance and cost. FPC-A delivers high cost-performance ratio, providing advanced laser cutting capabilities at a competitive price. This makes it an ideal choice for businesses looking to maximize their return on investment without compromising on quality.
Robust and Stable Construction
FCS-A features a heavy-duty bed body, ensuring exceptional stability during operation. This robust design minimizes vibrations and enhances cutting accuracy, even during high-speed or heavy-load operations. The result is consistent, high-quality cuts and extended machine lifespan.performance. Additionally, its compact size means easier transportation and simpler installation, saving you time and effort.
High-Precision Cutting
Equipped with a high-precision cutting system and an intelligent cutting head, FPC-A delivers superior accuracy and repeatability. The advanced technology ensures clean, smooth cuts with minimal material waste, making it perfect for industries that demand tight tolerances and flawless finishes.
Technical Data
| Specification | Details |
|---|---|
| Laser Power | 3kW / 6kW |
| Tube Processing Range (Semi-auto Loader) | Round OD: 30210mm Square Side Length: 20×20210×210mm Rectangle OD: 30~210mm |
| Tube Processing Range (Auto Loader) | Round OD: 30210mm Square Side Length: 20×20210×210mm Rectangle OD: 30~210mm |
| Tube Processing Range (Without Loader) | Round OD: 20230mm Square Side Length: 15×15230×230mm Rectangle/Oval/Triangle OD: 20~230mm H and Channel Beam Long Side: ＜180mm Angle Bar Long Side: ＜155mm |
| Max Travelling Speed | 80m/min |
| Max Acceleration | 0.8G |
| Rotation Speed | 80rpm |
| Positioning Accuracy | ±0.1mm |
| Repositioning Accuracy | ±0.05mm |
| Unloading Structure | 3m unloading with servo motor support |
| Max Loading Capacity | 260kg |
| Machine Weight | About 6 tons |
| Input Power | 380V, 50Hz |
| Power Consumption | 30-50kW |
Cutting Capacity
| Laser Power [W] | Tube Type | Straight Cut: Carbon Steel [mm] | Straight Cut: Stainless Steel [mm] | Straight Cut: Aluminum Alloy [mm] | Bevel Cut: Carbon Steel [mm] | Bevel Cut: Stainless Steel [mm] |
|---|---|---|---|---|---|---|
| 3000 | Round | 12 | 6 | 4 | 10 | 4 |
| 3000 | Square | 10 | 4 | 2 | 8 | 3 |
| 6000 | Round | 16 | 10 | 8 | 14 | 8 |
| 6000 | Square | 12 | 8 | 8 | 10 | 6 |
Configuration Sheet
| Component | Specification | Brand/Model |
|---|---|---|
| Laser Source | 3Kw/6Kw | Raycus/Max |
| Laser Cutting Head | BOCI SERIES | BLT310T/BLT421ST |
| Control System | BOCHU | Fscut3000 |
| Water Chiller | TongFei | TFLW Series |
| Chuck | 1× Hollow chuck, 1× Rotary chuck | DAIRUIKE |
| Linear Guide | Standard | CSK |
| Rack and Pinion | Standard | KH |
| Servo Motor | Standard | Inovance |
| Gear Reducer | Standard | Tomogawa |
| Cameras Monitoring | Standard | EETO |
| Proportional Valve | Standard | SMC |
| Exhaust System | Standard | EETO |
Optional Item
| Feature | Details |
|---|---|
| Semi-Autoloading System | Round, Square, Rectangle, Angel Bar, Channel Steel, H/I Beam |
| Bevel Cut Option | Recommended for 6kW and above; K, Y, V shapes, ±45° |
| Protective Glass | CE Level, OD > 7 |
| Semi-auto Loading System | Rack loader |
| Auto Loading System | Bundle loader with storage |
| Unloading Support | Extend to 6m, Servo Support + Cam unloading system |
| Light Curtain | LN TECH – For material loading area |
| Voltage Transformer | 50KVA |
| Nesting Software | TUBES-T Professional Nesting Software |
| High Proportional Valve | SMC (for Nitrogen) |
| Air Compressor | 15KW |
| Dust Collector | 5.5KW, 4 Cylinder |

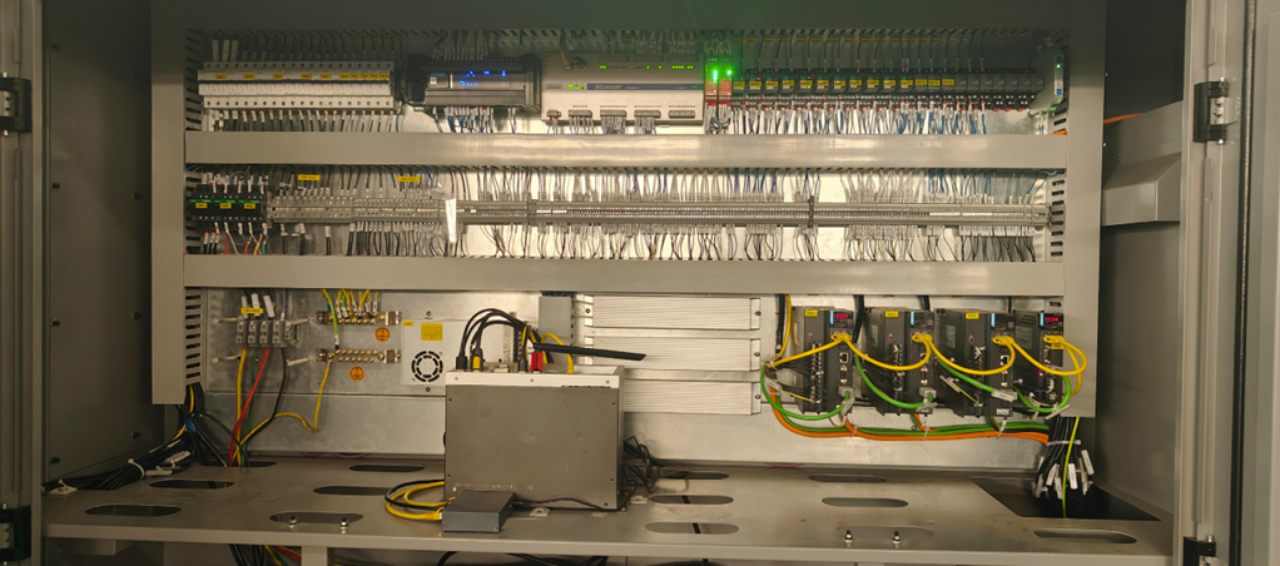

Safety Is Always Our First Priority
Monitoring Cutting Processing Camera
Lifting Pneumatic Front Door
Europe Standard Circuit
Gas Control System
Gas Run Out Alarm
Interlock Mechanism
CE Level Glass Protection (Optional)
Light Barrier (Optional)
Comprehensive System for Maximizing Your Production Outputs
FPC-A Series, Designed for working with Auto/Semi Auto Material Handling and Loading, improves Production Performance for Your Professional Pipe/Tube Cutting Workshops.
Intelligent Semi-Auto Loading: Efficiency Redefined

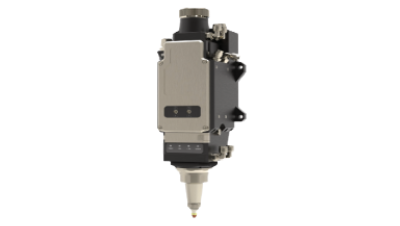

Intelligent Cutting Head
- Closed-loop Monitoring
- Protective Lens Temperature Monitoring
- Cutting-gas Pressure Monitoring
- Built-in Amplifier
- Anti-collision Protection
- Anti-explosion Detection of Protective Lens
- Smart Piercing Technology
- Real-time Process Monitoring

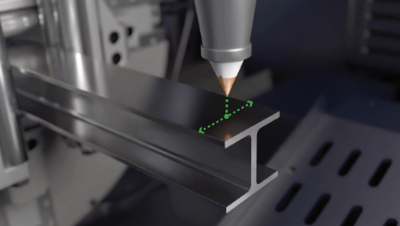

High Precision Control System
- Special-Shaped Beams: Supports centering for L/U/H beams, improving cutting accuracy and efficiency.
- Error Compensation: Incorporates square/rectangle profile offset to compensate for regular errors and reduce waste.
- Quick Tube Alignment: Offers quick alignment using the cutting head, reducing manual time and front-end scrap.
- Fine Finishing: Utilizes fine techniques for starting and ending cuts to avoid over-burning and burrs.
- Advanced Nesting: Compatible with TubesT nesting software for optimized toolpath generation.

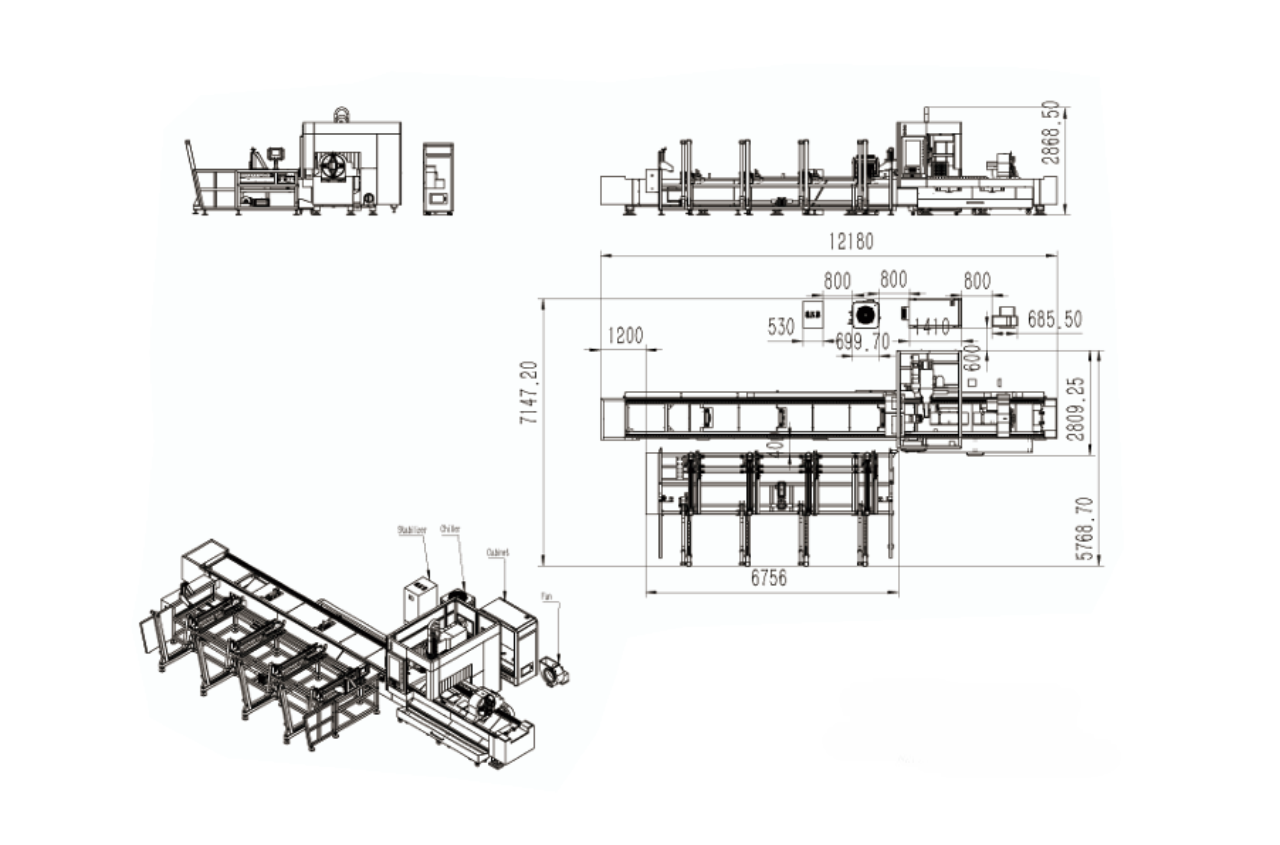

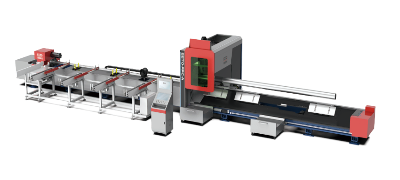

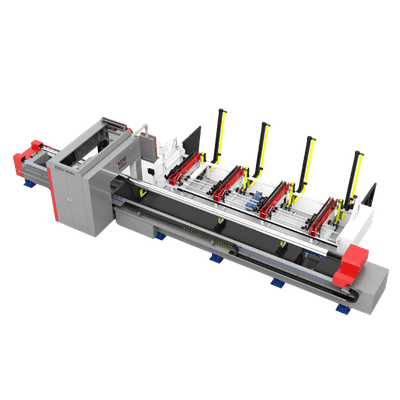

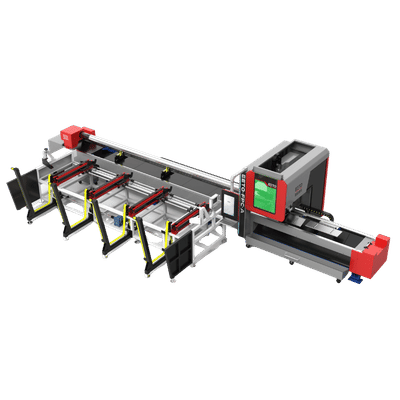

FPC-A 6m in and 3m out with auto loading system

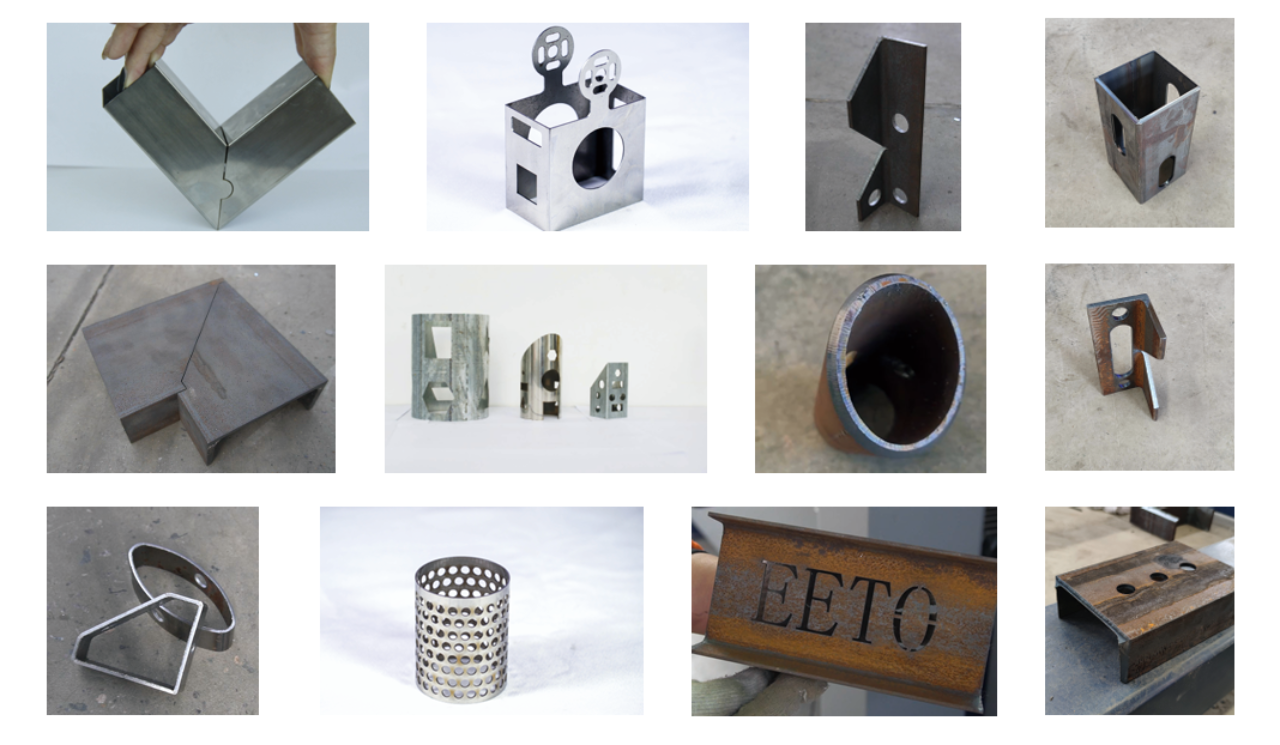

Tube Cutting Sample Display
EETO-FPC-A Laser Cutting Solutions

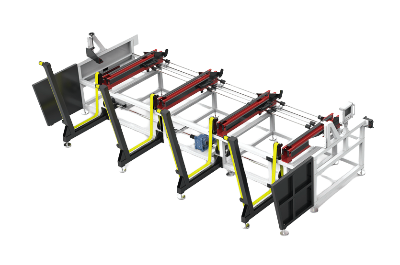

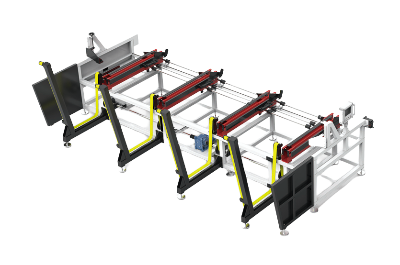

Advantages of Auto loading system
- Large Volume of Storage
- Wide Range of Tube Diameter
- High Level of Automation
System Parameters
| Max Storage | 3 tons |
| Loading Length | 4-6.2M |
| Alignment | Pneumatic Align |
| Loading Diameter Range | 30-210mm (Round) |

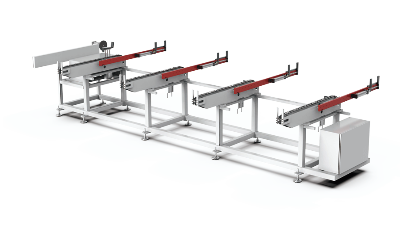

Advantages of semi-auto loading system
- Increased Productivity
- Improved Safety
- Reduced Labor Costs
System Parameters
| Max Storage | 3 tons |
| Max Loading quantity | 6pcs |
| Loading Length | 4-6.2M |
| Alignment | Manually |
| Loading Diameter Range | 30-210mm (Round) 20×20-210×210mm (Square) |
| Tube Loading Type | Round, Square, Rectangle, H beam, Channel, Unequal Angle Bar |

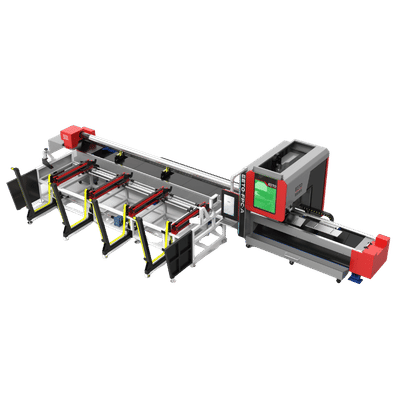

Series Machine Configurations

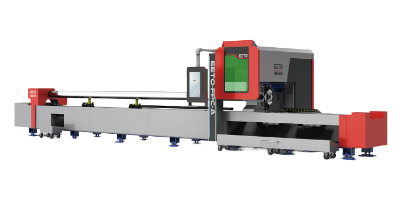

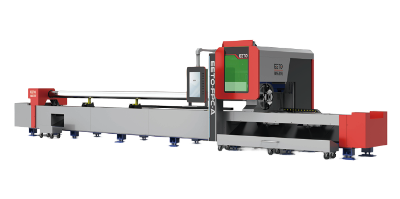

- Without Loading system

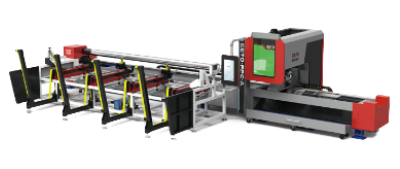

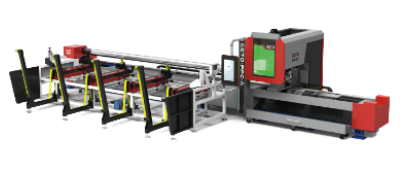

- With Bundle Loader
- With Semi-auto Loader and 6m Unloading system
FPC Series Core Features
- 6M Tube Loading, 3M/6M Unloading Length
- Optional Loading system
- Optional Bevel Cut
- Wide Range of Tube Processing
- Minimum 80mm Tailing
- Servo Motor Loading/Unloading Support
- Robust Machine Body
- High Dynamic Performance
- Gas Control System & 4 Gas inlet
- Independent Cabinet

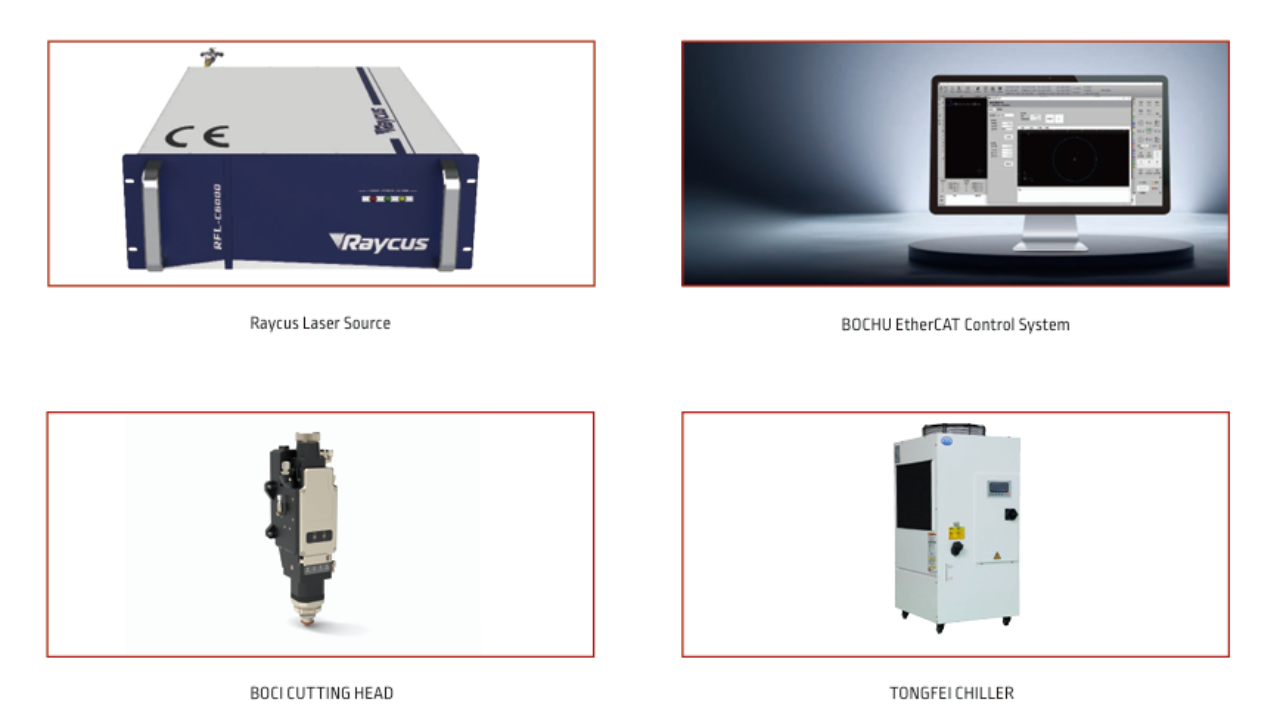

1ST TIER COMPONETNS
Ultimate Flexibility & Customized Configuration

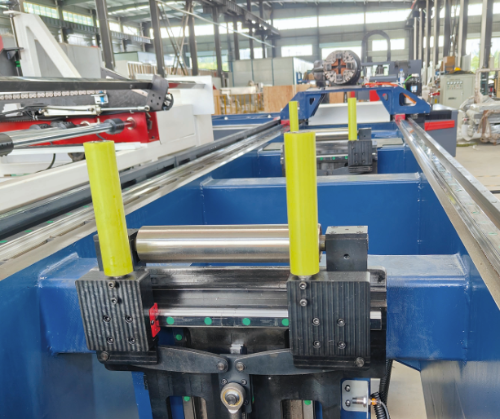

Servo Support System
- Avoiding sagging of small tubes
- Centering tube and feeding
- Automatic release and descend when chuck approaching
- Follow up support to achieve better cutting accuracy

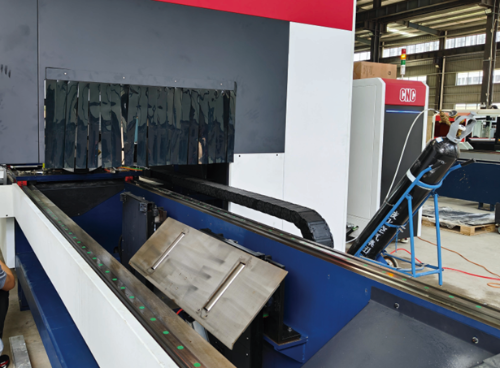

Unloading System
- 3m/6m flexible unloading length
- Servo motor follow-up support
- Auto pneumatic tilt for unloading
- Avoid swinging when cutting long remenant tubes

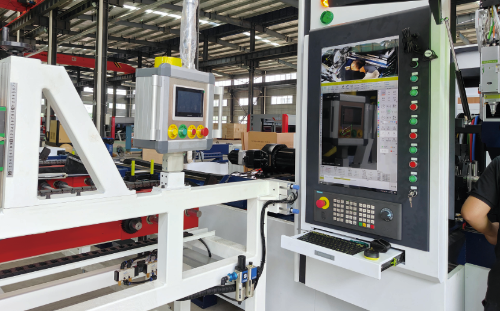

Robust Machine Body
- Minimizes vibrations and enhances cutting accuracy
- Endure high speed and heavy tube loading
- Ensure long-term cutting stability
- 27 Inch control panel and real-time Monitoring
