FIBER LASER CUTTING MACHINE FIT SERIES
Precision Engineering • FIT Series
Discover the EETO FIT Series Fiber Laser Cutting Machine, engineered for high-precision metal fabrication. Featuring high-speed performance and robust stability, the FIT Series optimizes industrial workflows with cutting-edge fiber technology. Explore the ultimate solution for efficient, professional-grade laser cutting today.

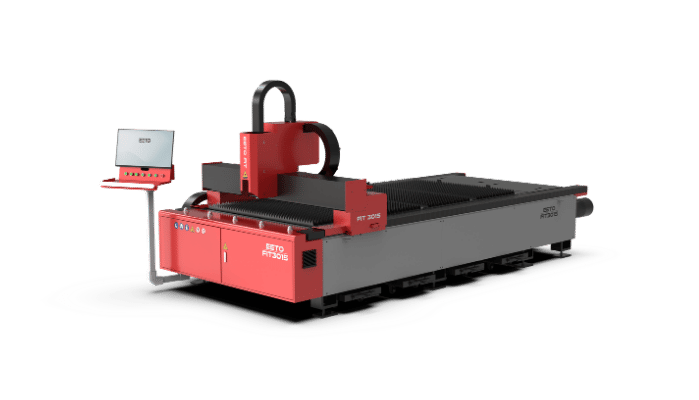

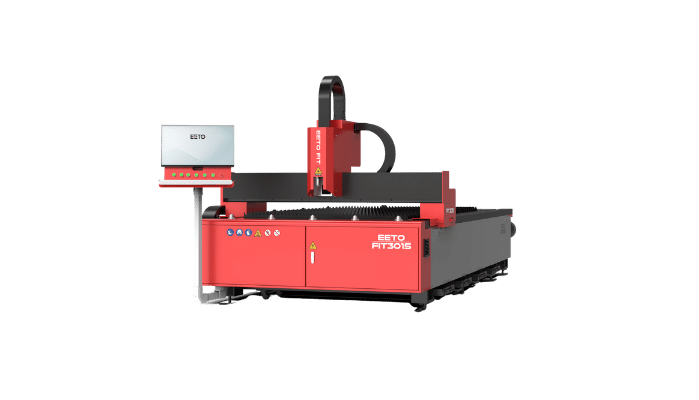

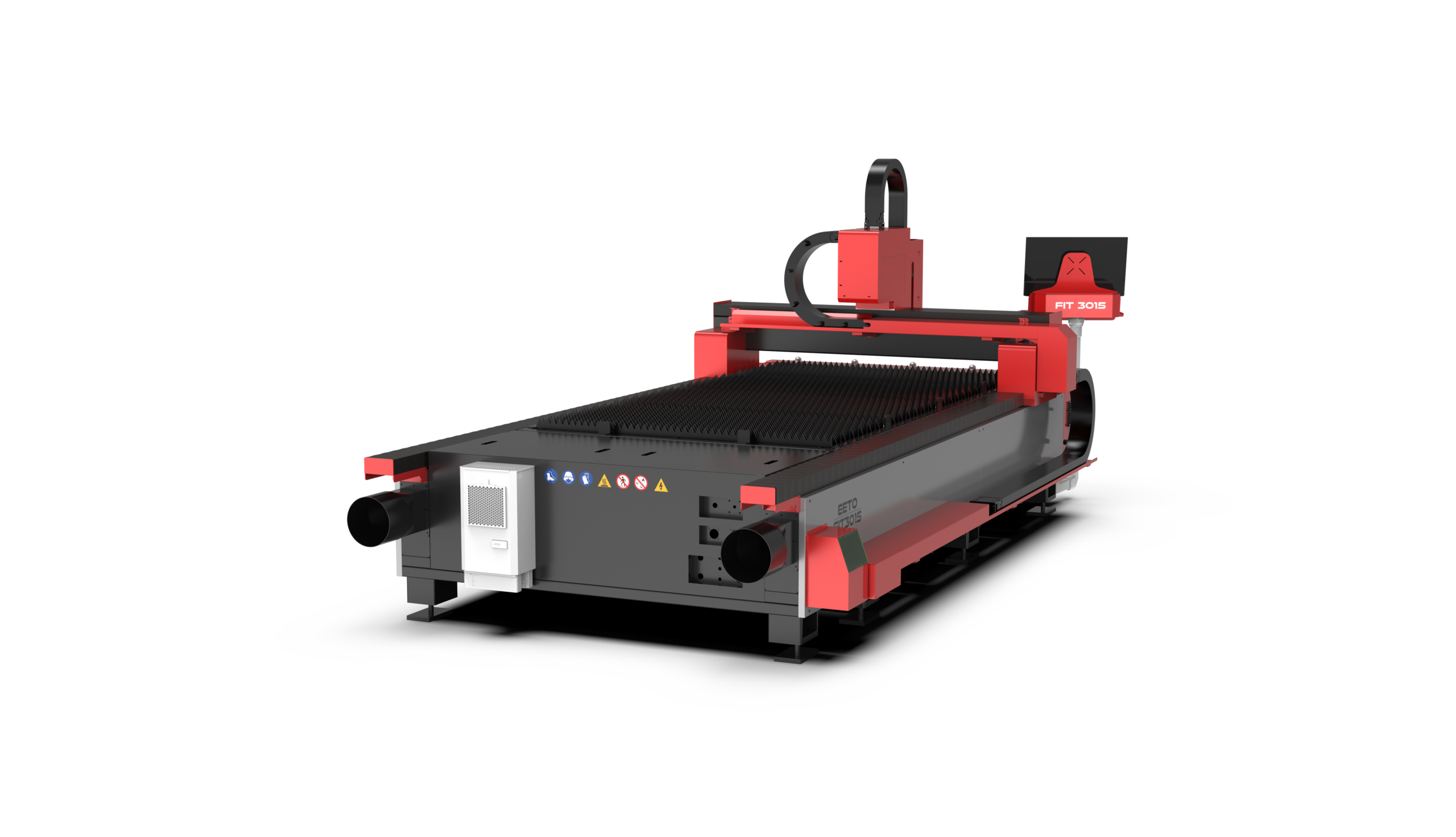

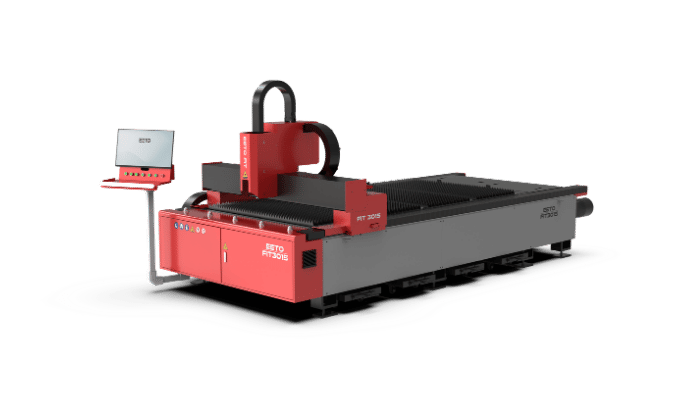

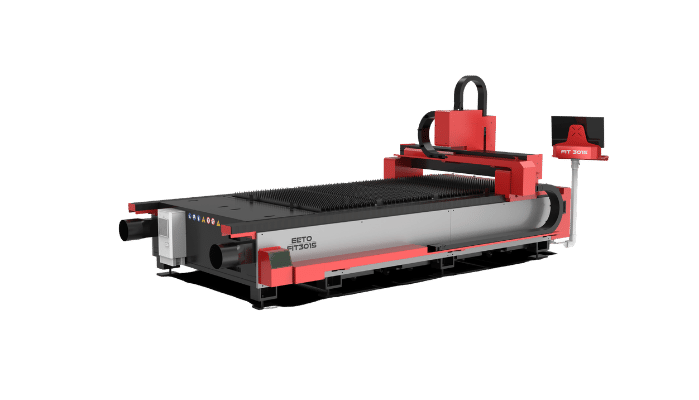

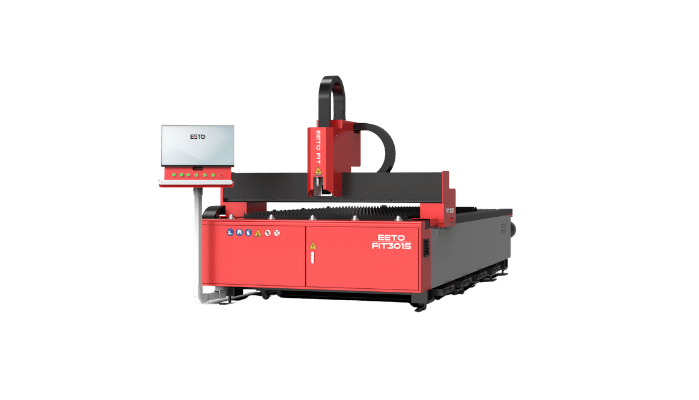

Fiber Laser Cutting Machine Fit Series : Compact, Flexible and Precise Laser Cutting Solution
Technical Data
| Model | FIT3015 | Model | FIT3015 |
|---|---|---|---|
| Laser Power | 1.5Kw,3Kw,6Kw | Laser Source | Maxphotonics |
| Cutting Format | 3000*1500mm | Control System | FSCUT200E/FSUCT4000E |
| Table Type | Open type with single table | Cutting Head | BOCI BLT series |
| Travelling Speed | 80m/min | Water Chiller | Tongfei |
| Acceleration | 0.6G | Linear Guide | C&U |
| Positioning Accuracy | ±0.05mm | Servo motor | BOCHU, Y axis 1.7Kw*2,X axis 1.2Kw*1, Z axis 0.4Kw*1 |
| Repositioning Accuracy | ±0.03mm | Reducer | TECHMECH TD Series |
| Power Supply | 33Ph,380V, 50/60Hz | High Rigidity Machine Body | EETO |
| Power Consumption | 30Kw | Follow-up Exhaust System | EETO |
| Machine Size （Machine Body） | 5300*2220*1800mm | Industrial PC | EETO |
| Max Loading Capacity | 1000kg | Gas Control Module | NNT-2-L |
| Machine Weight | 2.5 Tons | Control Screen | 27 Inch |
Compact Fiber Laser Cutting Solution
Affordable and Accessible
The FIT3015 is a budget-friendly laser cutter that delivers high-quality performance without the high price tag, making advanced technology more accessible to businesses.
Easy Transport and Installation
This machine is designed for easy transportation, which lowers shipping costs. It can be partially disassembled, allowing for a quick and simple setup.
Compact and Space-Efficient
Despite its powerful capabilities, the FIT3015 has a compact footprint, making it suitable for small and medium- sized workshops with limited space.
High Efficiency and Precision
This high-efficiency cutting machine offers 30m/min speed with 0.03mm accuracy, perfect for precision metal artwork and industrial components, minimizing downtime and maximizing ROI.
Versatile Material Compatibility
Cuts various metals with precision, including mild steel, stainless steel, aluminum, and copper/brass, while delivering smooth edges with minimal slag or burrs to save post-processing time.
Reliable Components
We use trusted brands and suppliers in our equipment. This provides customers with consistent quality and a longer lifespan for the machinery, while reducing the need for frequent after-sales service.
10+ Years of Expertise
1000+ machines deployed globally, with in-time remote support and local support.Each machine undergoes stress tests before shipment.Future-proof software/hardware upgrade and integration.
Good Design for Real-World Demands
Key features include an exhaust system for fume extraction, fast calibration and nozzle cleaning for easy operation, and modular gas control for cutting stability and quality.

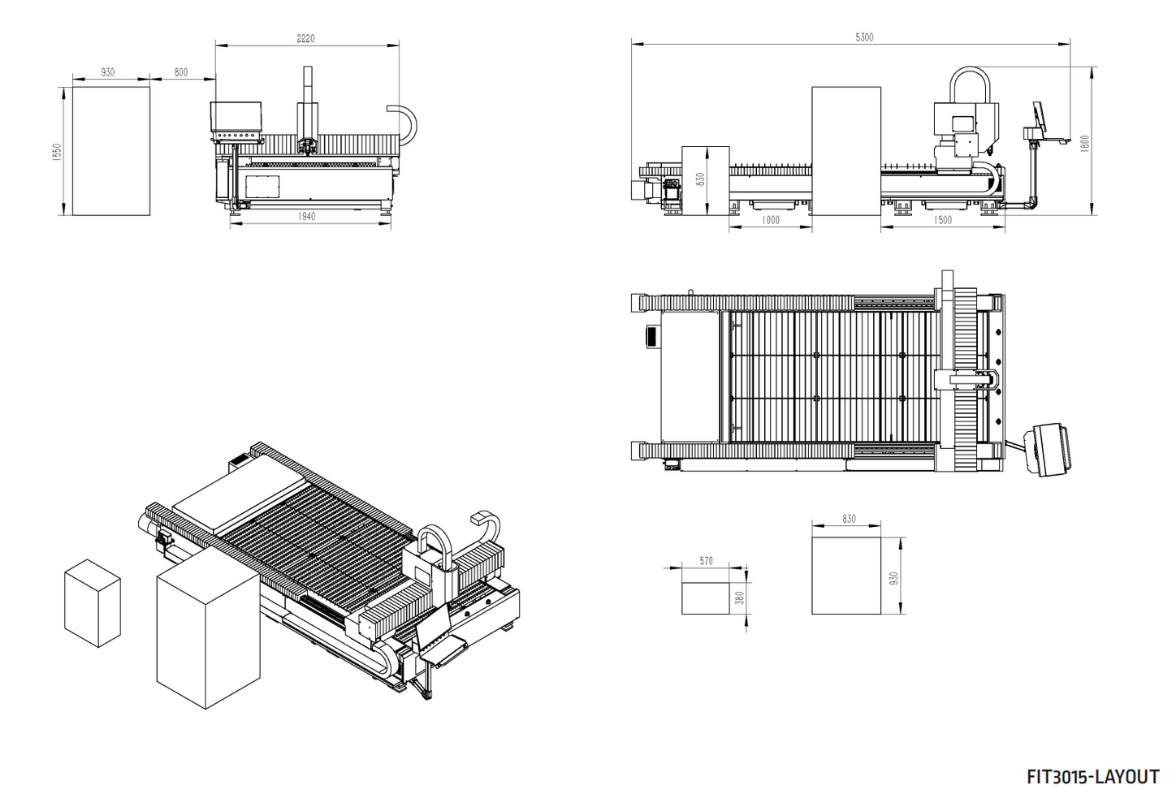

FIT3015-Layout Diagram
BOCI Series Cutting Head
Protective Lens Temperature Monitoring
Real-time monitoring of the status of the protective lens.warning system can work quickly when the lens are polluted and it can reduce the negative efects of polluted lens on cutting quality.
Air Pressure Monitoring
Real-time monitoring of gas fow rate during cutting, efectively reduces the afects of air pressure defciency/exaggerated on cut surface quality.
Dust-proof Front Cover
A dust-proof cover is added to the optical lens area to improve the sealing level of the core chamber and extend the core lens life.
Water Cooling
Water-cooled design covering 90% of the optical path of the cutting head makes cutting more stable.
Anti-Collision Protection
The anti-collision design of the cutting head efectively reduces the depot-repair probability, without technical support, customers can replace the broken parts by themselves, and the maintenance cost is lower.
Collimation and Focusing
Real-time monitoring of gas fow rate during cutting, efectively reduces the afects of air pressure defciency/exaggerated on cut surface quality.
Closed-loop Monitoring
A dust-proof cover is added to the optical lens area to improve the sealing level of the core chamber and extend the core lens life.
Four Sets of Protective Lens
Establish multiple protective barriers to improve the sealing level of the core chamber.

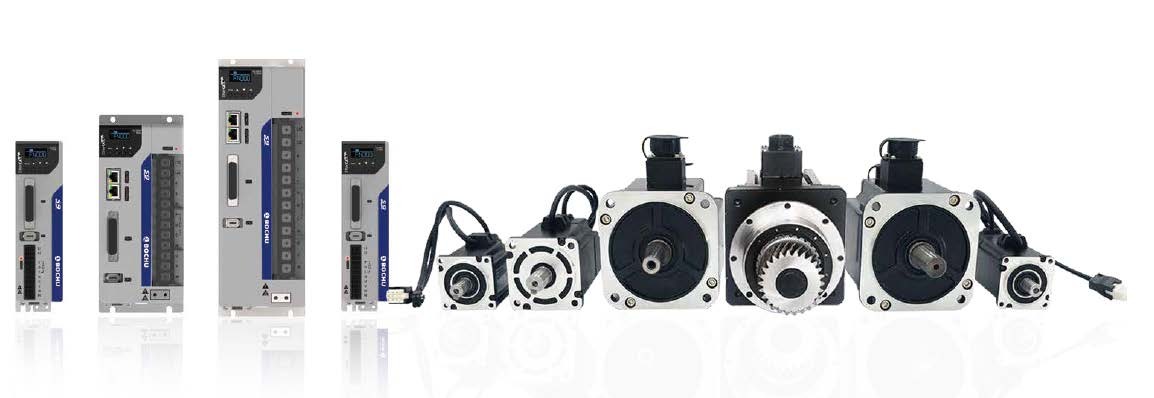

BOCHU S9 Series Servo Motors
Electrical and Gas Safety
- High Voltage Protection
- Europe Standard Electrical Circuit Design
- Safety Relay Protection
- EtherCAT Control System
- WIRELESS WIFI Connection
- 3-Path Gas inle
- Gas filter
- Low Pressure Alarm
- Proportional Valve for Oxygen or Nitrogen
- Pneumatic Control for Dust extraction and Working Table Locking
